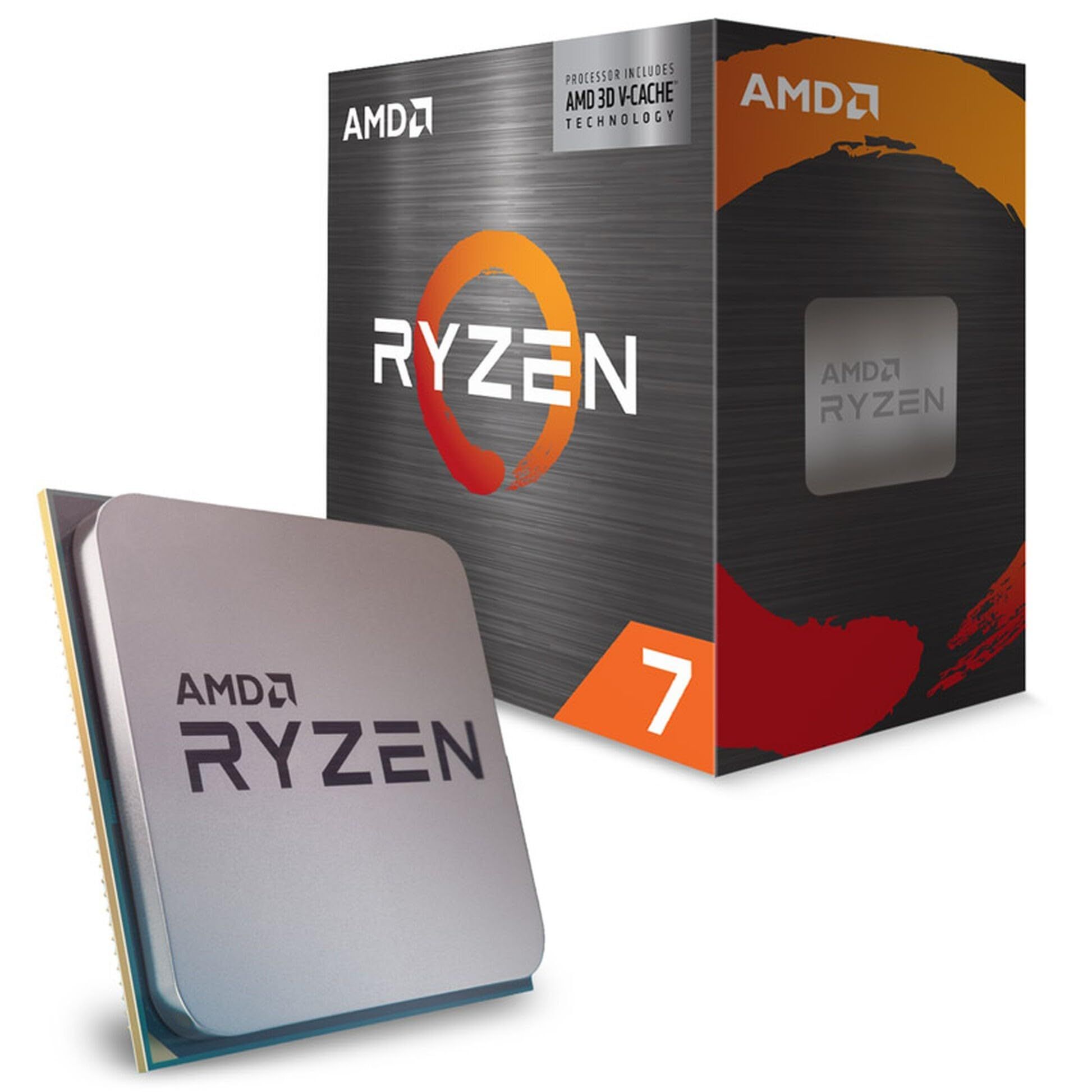

AMD Ryzen 7 5700X3D

Name: AMD Ryzen 7 5700X3D
Brand: AMD
SKU: amd_ryzen_7_5700x3d
Price: 229 USD
Availability: InStock

The budget-friendly version of the 5800X3D, bringing top-tier AM4 gaming performance to a lower price point.

BrandAMD

NameAMD Ryzen 7 5700X3D

Attributes

Attribute	Specification	Notes
Architecture	Zen 3
Base Clock	3
Base Clock Speed	3 GHz	GHz
Cache L3	96
Cache Size	96 MB	MB
Capacity	128
Compatibility	['AM4 socket', 'DDR4', 'PCIe 4.0', 'PCIe 3.0', 'Desktop motherboard chipsets: A520/B450/B550/X470/X570']
Component Type	CPU
Core Count	8 cores	cores
Cpu Cooler Included	False
Cpu Microarchitecture Generation	AMD Zen 3
Cpu Socket	AM4
Form Factor	Desktops
Included Cooler	No
Integrated Graphics	No
Interface Standard	['PCIe 4.0', 'PCIe lanes (20 usable for CPU)']
Launch Date	2024-01-08
Manufacturer	AMD
Manufacturing Process	7 nm
Max Boost Clock	4.1
Max Boost Clock Speed	4.1 GHz	GHz
Max Memory Speed	3200
Max Turbo Power	142
Memory Channels	2
Memory Support	DDR4-3200
Memory Type Support	128
Overclocking Support	No
Pcie Lane Count	24
Pcie Version	PCIe 4.0
Pci Express Version	PCIe 4.0
Performance Spec	['8 cores / 16 threads', 'Base clock 3.0 GHz', 'Max boost up to 4.1 GHz', 'Total cache 100 MB (96 MB L3 + additional cache listed)']
Power Requirements	105
Price	229 USD	USD
Process Node	TSMC 7nm
Socket	AM4
Tdp Processor Base Power	105
Thermal Design	['Default TDP 105W', 'Max operating temperature (Tjmax) 90°C']
Thermal Design Power	105 W	W
Thread Count	16 threads	threads
Unlocked Multiplier Overclocking	False
