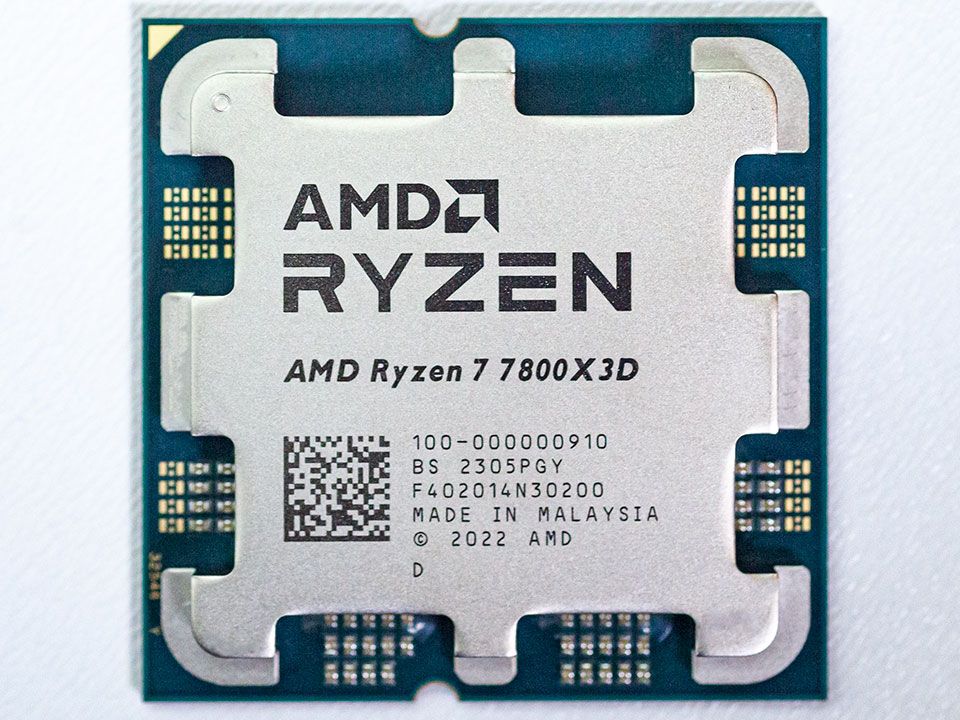

AMD Ryzen 7 7800X3D
Widely considered the best gaming CPU in the world, featuring 2nd Gen 3D V-Cache technology for massive L3 cache boosts.
General Information
BrandAMD
NameAMD Ryzen 7 7800X3D
Attributes
| Attribute | Specification | Notes |
|---|---|---|
| Architecture | Zen 4 | |
| Base Clock | 4.2 | |
| Base Clock Speed | 4.2 GHz | GHz |
| Cache L3 | 96 | |
| Cache Size | 96 MB | MB |
| Capacity | 96 | |
| Compatibility | ['AM5', 'Supporting Chipsets: A620, X670E, X670, B650E, B650, X870E, X870, B840, B850', 'DDR5 (UDIMM)', 'PCIe 5.0'] | |
| Component Type | CPU | |
| Core Count | 8 cores | cores |
| Cpu Cooler Included | False | |
| Cpu Microarchitecture Generation | AMD Zen 4 | |
| Cpu Socket | AM5 | |
| Form Factor | Desktops (Boxed Processor) | |
| Included Cooler | No | |
| Integrated Gpu Model | AMD Radeon Graphics | |
| Integrated Graphics | Yes | |
| Interface Standard | ['CPU Socket AM5', 'PCI Express 5.0', 'DDR5', 'Native PCIe lanes total/usable: 28/24'] | |
| Launch Date | 2023-04-06 | |
| Manufacturer | AMD | |
| Manufacturing Process | TSMC 5nm FinFET (CPU cores) | |
| Max Boost Clock | 5 | |
| Max Boost Clock Speed | 5 GHz | GHz |
| Max Memory Speed | 5200 | |
| Max Turbo Power | 162 | |
| Memory Channels | 2 | |
| Memory Support | DDR5 (official max speed: DDR5-5200, UDIMM) | |
| Memory Type Support | 1 | |
| Overclocking Support | No | |
| Pcie Lane Count | 28 | |
| Pcie Version | PCIe 5.0 | |
| Pci Express Version | PCIe 5.0 | |
| Performance Spec | ['Up to 5 GHz max boost clock', '4.2 GHz base clock', '8 cores / 16 threads', '96 MB L3 cache (AMD 3D V-Cache)'] | |
| Power Requirements | 120 | |
| Price | 339.99 USD | USD |
| Process Node | TSMC 5nm | |
| Socket | AM5 | |
| Tdp Processor Base Power | 120 | |
| Thermal Design | ['Default TDP 120W', 'Max. Operating Temperature (Tjmax) 89°C'] | |
| Thermal Design Power | 120 W | W |
| Thread Count | 16 threads | threads |
| Unlocked Multiplier Overclocking | False | |
| Warranty Period | 36 |
