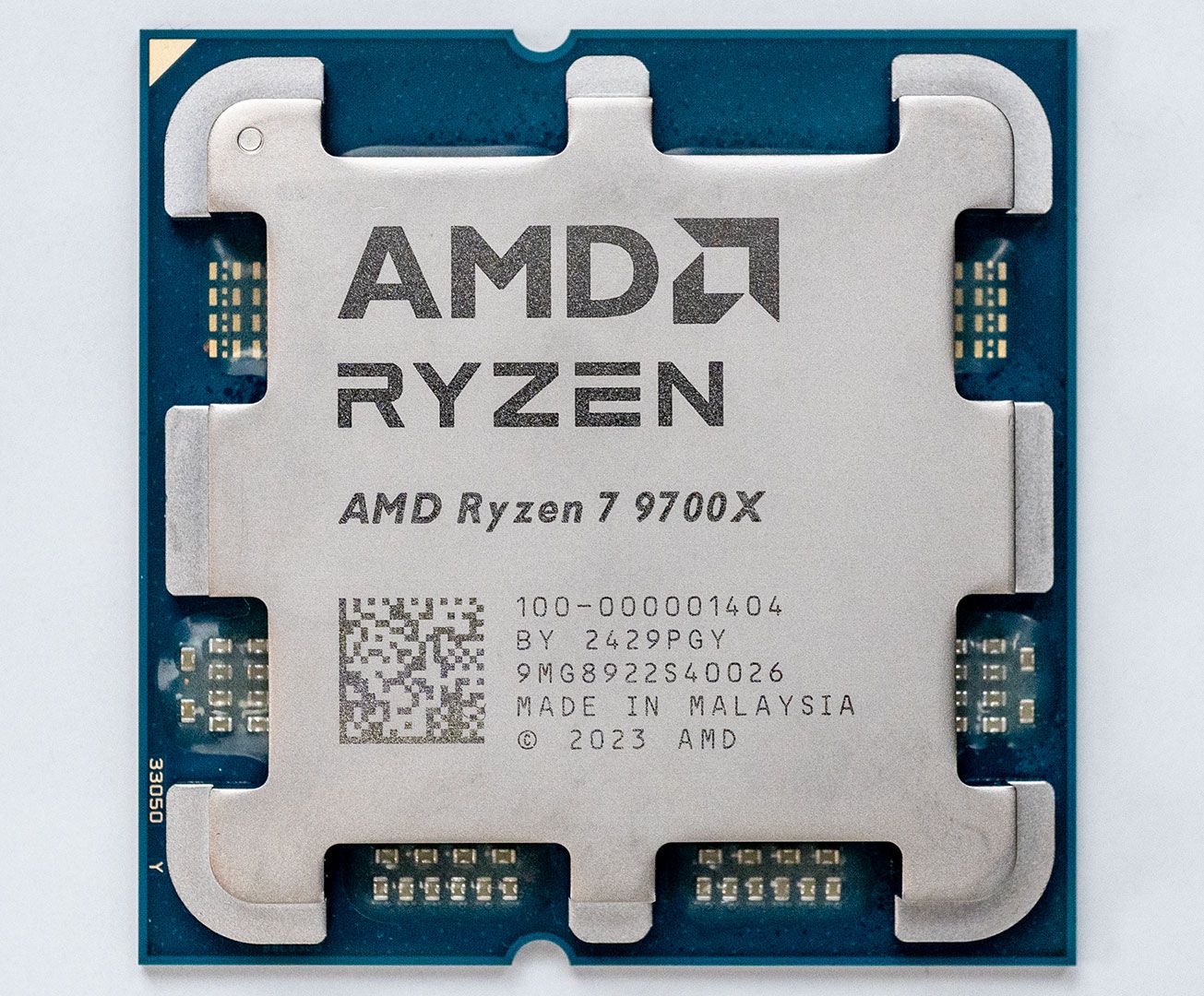

AMD Ryzen 7 9700X

The Ryzen 7 enthusiast chip for the Zen 5 generation, balancing 8 high-performance cores with efficiency.

AMD Ryzen 7 9700X retail box (hero shot)

General Information

BrandAMD
NameAMD Ryzen 7 9700X

Product Highlights

8-Core Zen 5 Desktop Performance

Built on AMD’s Zen 5 architecture, this processor provides 8 cores and 16 threads for enthusiast desktop systems.

Fast Clocks with Efficient 65W Power

The Ryzen 7 9700X runs at a 3.8 GHz base clock and boosts up to 5.5 GHz with a 65W default TDP.

Modern AM5 Platform Support

AM5 socket compatibility includes DDR5-5600 memory support, PCIe 5.0 connectivity, and integrated AMD Radeon Graphics.

The AMD Ryzen 7 9700X is a Zen 5 desktop processor for AM5 systems, featuring 8 cores, 16 threads, a 3.8 GHz base clock, up to 5.5 GHz boost, 65W default TDP, DDR5-5600 support, PCIe 5.0 connectivity, and integrated AMD Radeon Graphics; a CPU cooler is not included.

Media Reviews

Video Analysis

Attributes

AttributeSpecificationNotes
ArchitectureZen 5
Base Clock3.8
Base Clock Speed3.8 GHzGHz
Cache L332
Cache Size32 MBMB
Capacity256
Compatibility['AM5 socket', 'DDR5', 'PCIe 5.0', 'x86-64 desktop platform', 'Supporting chipsets: A620, B650, B650E, B850, X670, X670E, X870, X870E', 'NVMe (boot/RAID support)']
Component TypeCPU
Core Count8 corescores
Cpu Cooler IncludedFalse
Cpu Microarchitecture GenerationZen 5
Cpu SocketAM5
Form FactorDesktops, Boxed Processor
Included CoolerNo
Integrated Gpu ModelAMD Radeon Graphics
Integrated GraphicsYes
Interface Standard['PCI Express 5.0 (up to 24 usable lanes)']
Launch Date2024-08-08
ManufacturerAMD
Manufacturing Process4nm FinFET (TSMC 4nm for CPU cores; I/O die uses TSMC 6nm FinFET)
Max Boost Clock5.5
Max Boost Clock Speed5.5 GHzGHz
Max Memory Speed5600
Max Turbo Power88
Memory Channels2
Memory SupportDDR5-5600
Memory Type Support1
Overclocking SupportYes
Pcie Lane Count24
Pcie VersionPCIe 5.0
Pci Express VersionPCIe 5.0
Performance Spec['8 cores', '16 threads', 'Base clock 3.8 GHz', 'Max boost up to 5.5 GHz', 'Default TDP 65W']
Power Requirements65
Process NodeTSMC 4nm
SocketAM5
Tdp Processor Base Power65
Thermal Design['Max operating temperature (Tjmax) 95°C']
Thermal Design Power65 WW
Thread Count16 threadsthreads
Unlocked Multiplier OverclockingTrue
Warranty Period36
