Ada Features and Ray Tracing
NVIDIA Ada Lovelace architecture supports ray tracing, DLSS 3 upscaling, and AV1 encoding.
If you buy through affiliate links, we may earn commissions, which help support our site.
Updated 6 months ago
A straightforward, high-value RTX 4060 offering all standard Ada features like AV1 encoding and DLSS 3.

NVIDIA Ada Lovelace architecture supports ray tracing, DLSS 3 upscaling, and AV1 encoding.
The open-air dual-fan card measures 210 x 115 x 39.9 mm and fits a dual-width PCI Express x16 graphics slot.
Three DisplayPort 1.4a outputs and one HDMI 2.1 output provide multiple display connection options.

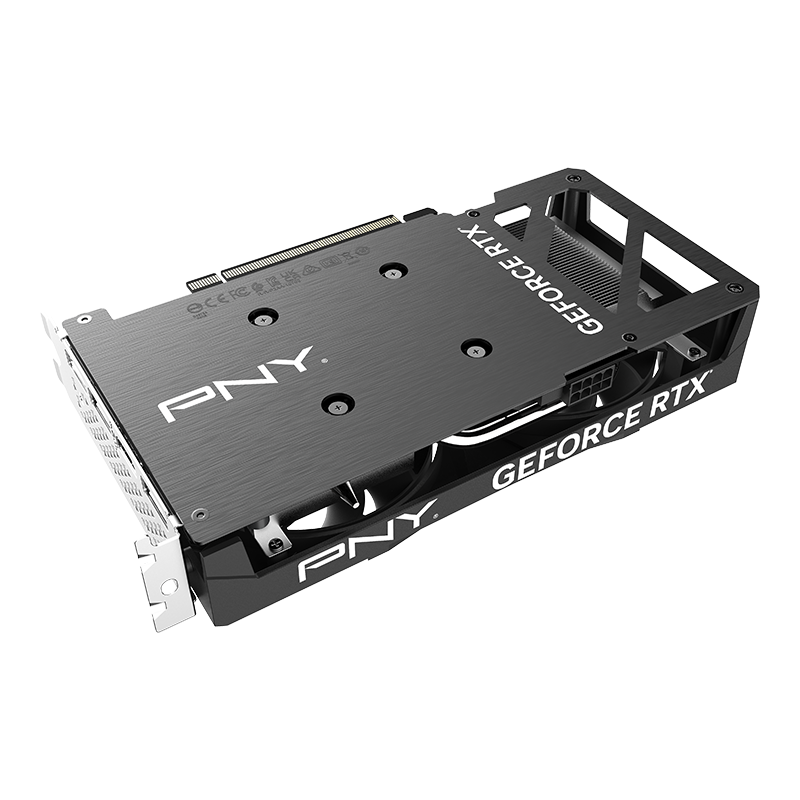

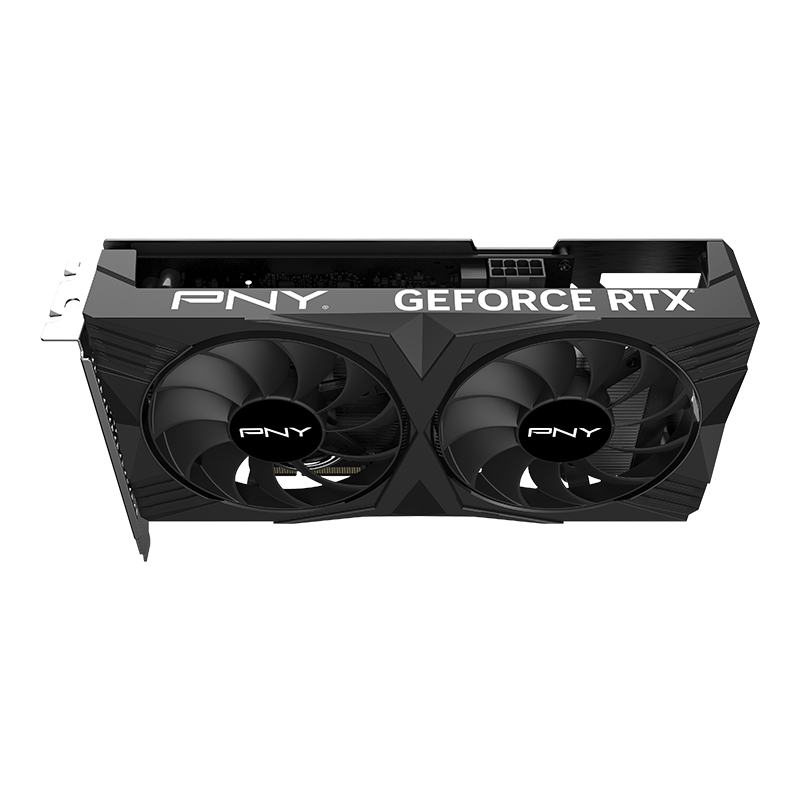

The PNY GeForce RTX 4060 Verto Dual Fan 8GB is a dual-slot graphics card based on NVIDIA Ada Lovelace architecture, with 8GB of GDDR6 memory, a 2460 MHz boost clock, and 115W power requirements.
The reviewer notes the card provides a small performance improvement but significant power efficiency gains. While it is quiet and subtle, they highlight issues with a lack of a VRAM temperature sensor, an erroneous power draw sensor that prevents 0dB mode, and concerns that the 8GB VRAM might not age well.
The review praises the card for its exceptional power efficiency, quiet dual-fan cooling, and support for DLSS 3 and AV1. However, it notes that the 8GB VRAM and narrow 128-bit memory bus act as significant bottlenecks for resolutions higher than 1080p.
The reviewer finds the card a capable 1080p gaming solution with a silent cooling system, though they note load temperatures are slightly higher than other RTX 4060 models. They express hesitation regarding the value proposition compared to existing options like a used RTX 3070 or 3060 Ti.
298,154 views • 2 years ago
126,917 views • 1 year ago
71,139 views • 1 year ago
17,186 views • 3 years ago
16,110 views • 3 years ago
899 views • 2 years ago
| Attribute | Specification | Notes |
|---|---|---|
| Capacity | 8 GB/W | GB/W |
| Compatibility | PCI Express 4.0 x16 (x8 active), 8-pin supplementary power connector, PCI Express-compliant motherboard with one dual width x16 graphics slot (x8 active), Windows 11 64-bit, Windows 10 (November 2018 or later) 64-bit, Linux 64-bit | |
| Component Type | GPU | |
| Cooling Design | Open-air dual-fan | |
| Dimensions | 210 x 115 x 39.9 mm (card dimensions), 8.27 x 4.52 x 1.57 in (card dimensions) | mm |
| Encoder Decoder Features | -1 | |
| Form Factor | Dual-slot plug-in card | |
| Gpu Architecture | NVIDIA Ada Lovelace | |
| Gpu Model | NVIDIA GeForce RTX 4060 | |
| Interface Standard | PCI Express 4.0 x16 (x8 active), DisplayPort 1.4a (x3), HDMI 2.1 (HDMI 2.1a) | |
| Manufacturer | PNY | |
| Performance Spec | Boost clock: 2460 MHz, Base clock: 1830 MHz, CUDA cores: 3072, Memory: 8GB GDDR6, Memory interface: 128-bit, Memory bandwidth: 272 GB/s | |
| Power Requirements | 115 W | W |
| Ray Tracing Support | Yes | |
| Upscaling Technology | NVIDIA DLSS 3 | |
| Vram Capacity | 8 | |
| Warranty Period | 36 months | months |

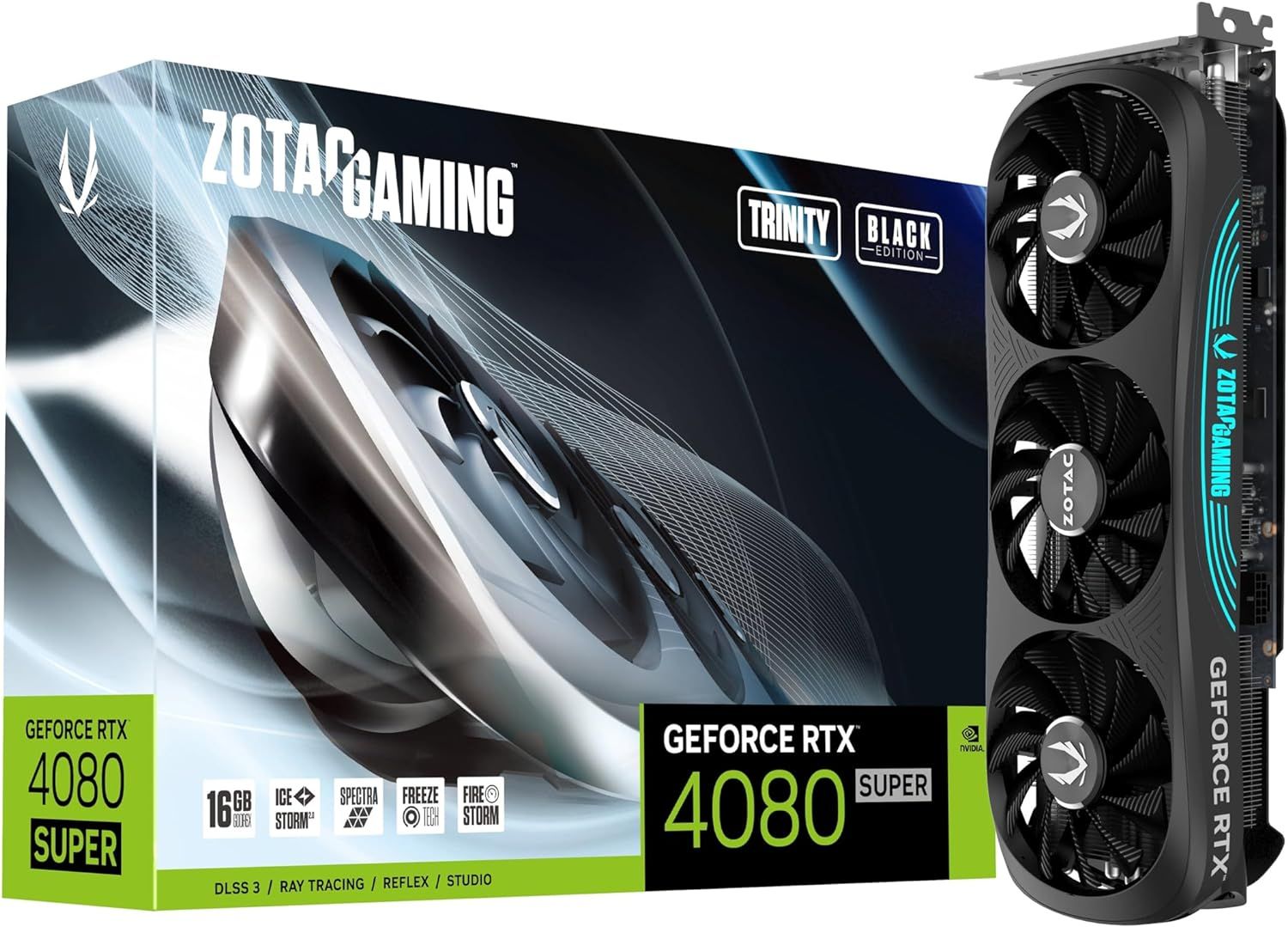

A triple-fan powerhouse with IceStorm 2.0 advanced cooling and minimal RGB styling. Perfect for dark-themed builds needing RTX 4080 SUPER performance.
View Details

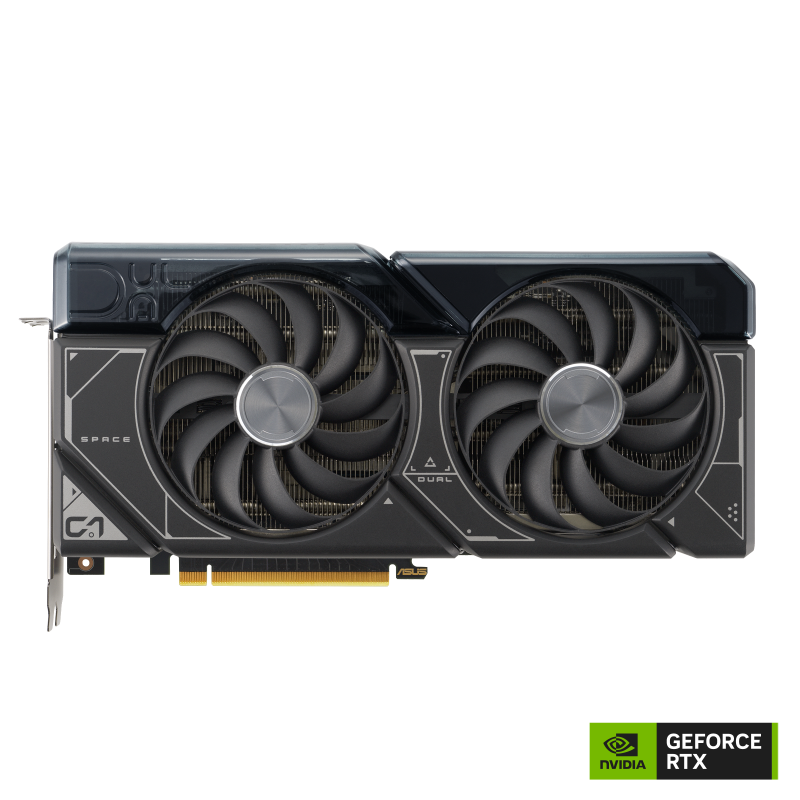

The ultimate 1440p and entry-level 4K card, the Dual series provides a compact dual-fan design that fits into many mid-sized cases without sacrificing cooling.
View Details

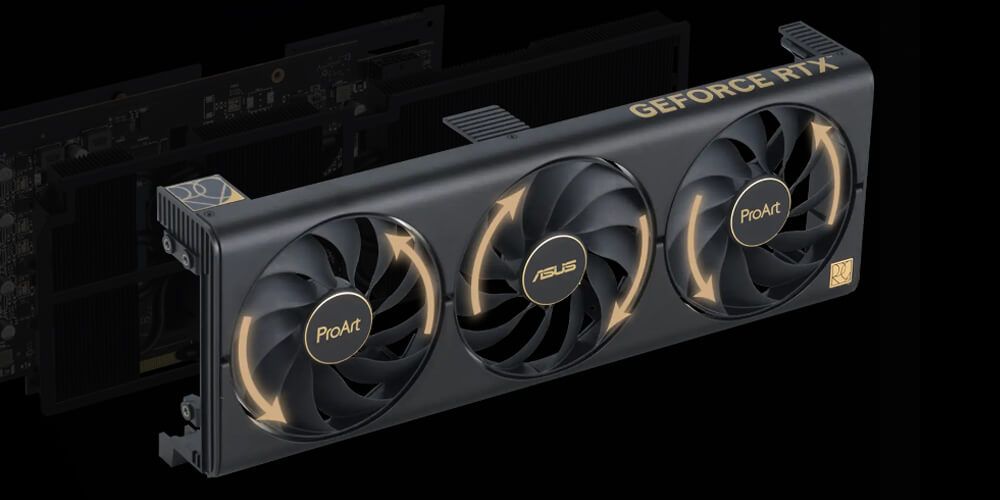

Brings the 4070 Ti SUPER into the sleek ProArt family. Tailored for creative apps and high-fidelity gaming in smaller PC cases.
