Ada Lovelace Graphics Features
NVIDIA Ada Lovelace architecture, dedicated RT cores, and DLSS 3 support ray tracing and frame generation.
If you buy through affiliate links, we may earn commissions, which help support our site.
Updated 6 months ago
A straight-to-the-point dual-fan 4070 SUPER providing excellent ray tracing capabilities and frame generation.

NVIDIA Ada Lovelace architecture, dedicated RT cores, and DLSS 3 support ray tracing and frame generation.
The card pairs 12GB of GDDR6X memory with a 192-bit interface and 504 GB/s of memory bandwidth.
The 247 x 120 x 41 mm, SFF-Ready card uses an open-air dual-fan cooler and fits a dual-width PCIe 4.0 x16 graphics slot.

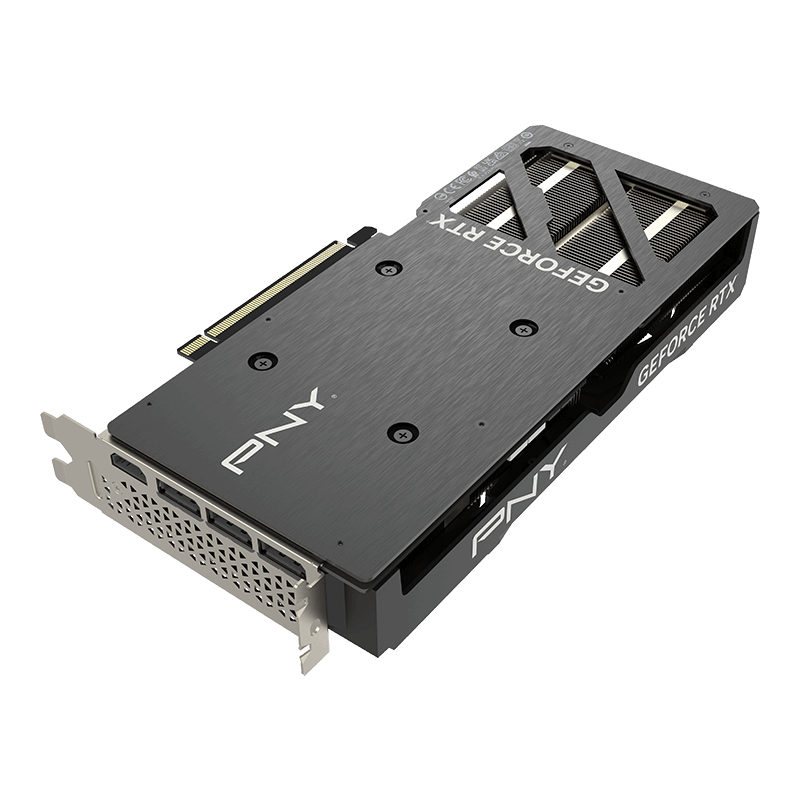

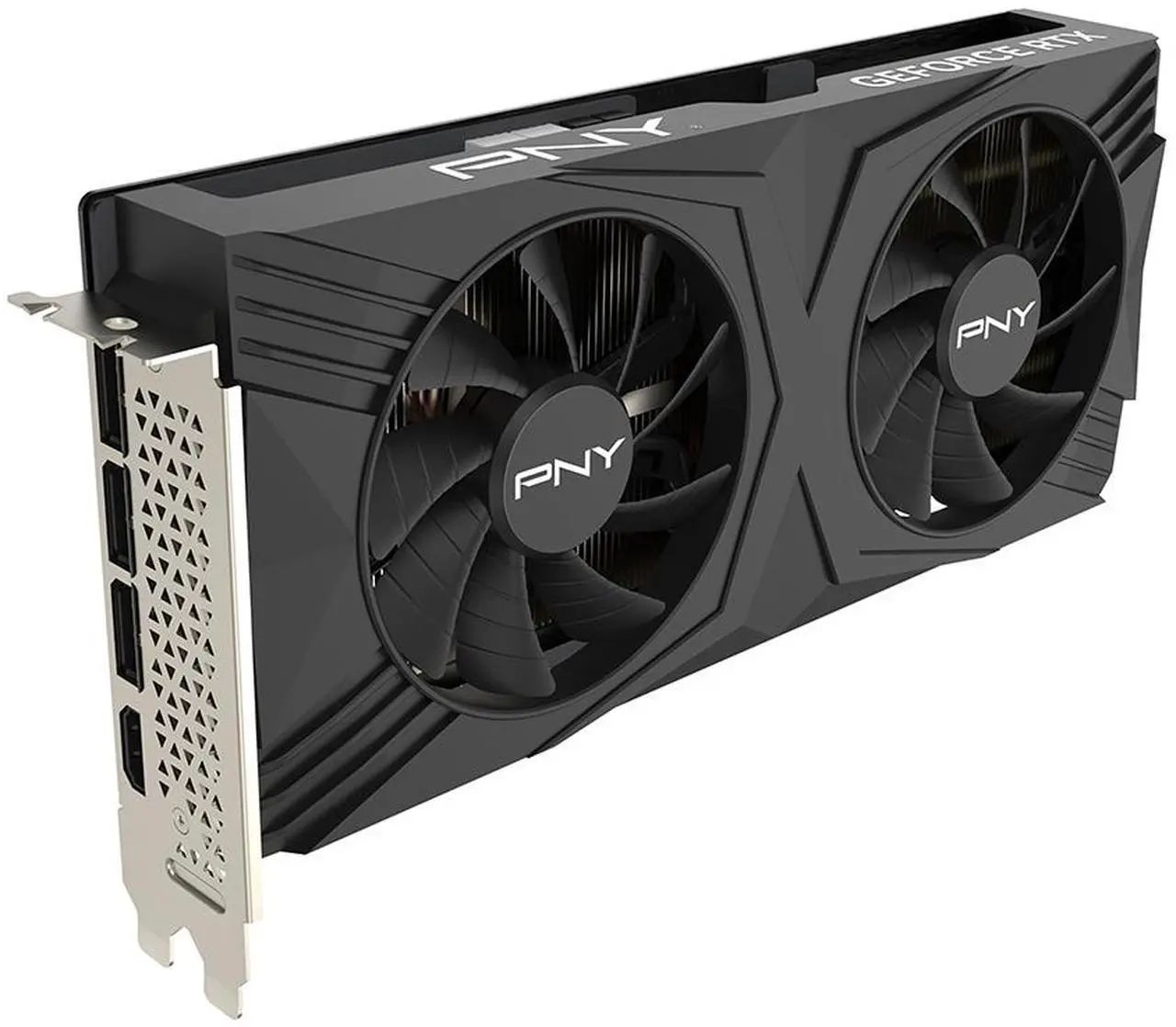

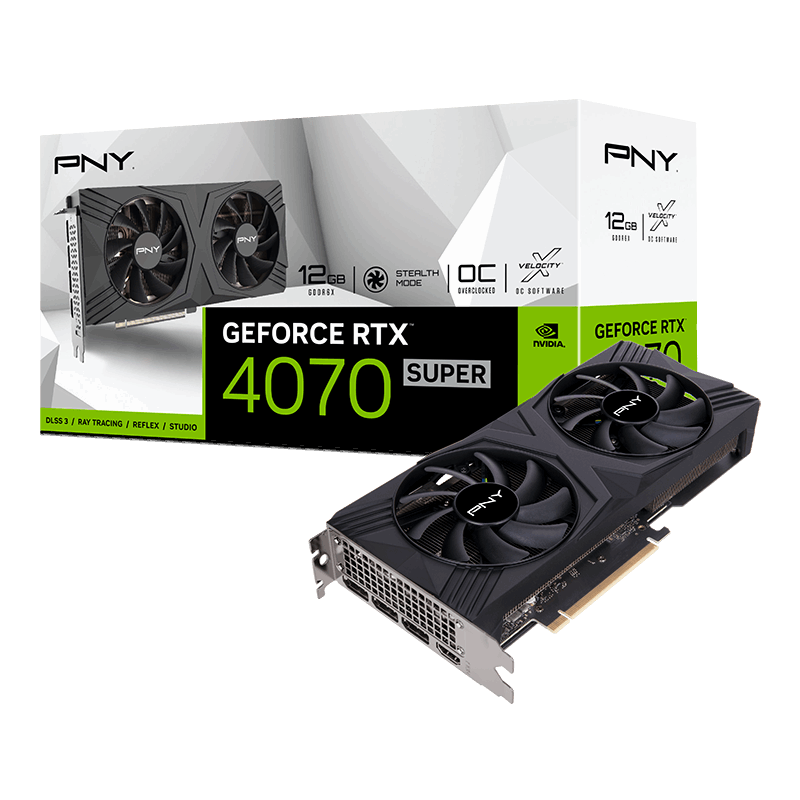

The PNY GeForce RTX 4070 SUPER Verto Overclocked is a dual-slot graphics card with NVIDIA Ada Lovelace architecture, 12GB of GDDR6X memory, an open-air dual-fan cooler, and support for DLSS 3 and ray tracing.
The reviewer concludes it is an excellent graphics card that improves upon the Founders Edition with tweaked boost clocks, good cooling, and helpful software, making it a strong recommendation despite its plain aesthetics.
The review notes that this card is designed for users who prioritize baseline MSRP pricing over the small performance gains of more expensive overclocked models. It highlights PNY's improved manufacturing quality, compact design, and effective acoustic tuning.
The reviewer commends the card's compact, dual-slot configuration for its excellent case compatibility, though it notes that this design results in compromises regarding operating temperatures and noise levels.
The reviewer describes the card as an economical, fast, and highly interesting mid-range option that is currently the cheapest overclocked model in its class. While noting some minor issues like thermal paste application, the verdict is positive, highlighting its value as a practical, reliable choice that avoids unnecessary aesthetic extras like RGB.
2,495,783 views • 2 years ago
729,121 views • 2 years ago
33,634 views • 1 year ago
11,933 views • 8 months ago
3,926 views • 1 year ago
108 views • 11 months ago
| Attribute | Specification | Notes |
|---|---|---|
| Capacity | 12 GB/W | GB/W |
| Compatibility | PCI Express 4.0 x16, dual width x16 graphics slot, two 8-pin supplementary power connectors (via 16-pin to 2x8-pin cable), SFF-Ready, Windows 10/11 64-bit, Linux 64-bit | |
| Component Type | GPU | |
| Cooling Design | Open-air dual-fan | |
| Dimensions | 247 x 120 x 41 mm, Card: 9.74 x 4.74 x 1.61 in (2 slots), Max GPU length: 247 mm, Height: 120 mm, Width: 41 mm | mm |
| Form Factor | dual-slot | |
| Gpu Architecture | NVIDIA Ada Lovelace | |
| Gpu Model | NVIDIA GeForce RTX 4070 SUPER | |
| Interface Standard | PCI-Express 4.0 x16, DisplayPort 1.4a (x3), HDMI 2.1 (1x), 16-pin (1x 16-pin to 2x 8-pin) power connector | |
| Manufacturer | PNY | |
| Memory Bus Width | 192 | |
| Pcie Interface | PCIe 4.0 x16 | |
| Performance Spec | 7168 CUDA cores, Base clock: 1980 MHz, Boost clock: 2490 MHz, 12GB GDDR6X, 192-bit memory interface, Memory bandwidth: 504 GB/s, DLSS 3, Ray tracing (full ray tracing / dedicated RT cores) | |
| Power Requirements | 220 W | W |
| Ray Tracing Support | Yes | |
| Thermal Design | TDP/Thermal design power: 220 W, Max operating temperature: 90 C | |
| Upscaling Technology | 0 | |
| Vram Capacity | 12 | |
| Vram Type | GDDR6X | |
| Warranty Period | 36 months | months |

A highly compact dual-fan card that delivers RTX 4070 SUPER performance. Fits perfectly into Mini-ITX builds.
View Details

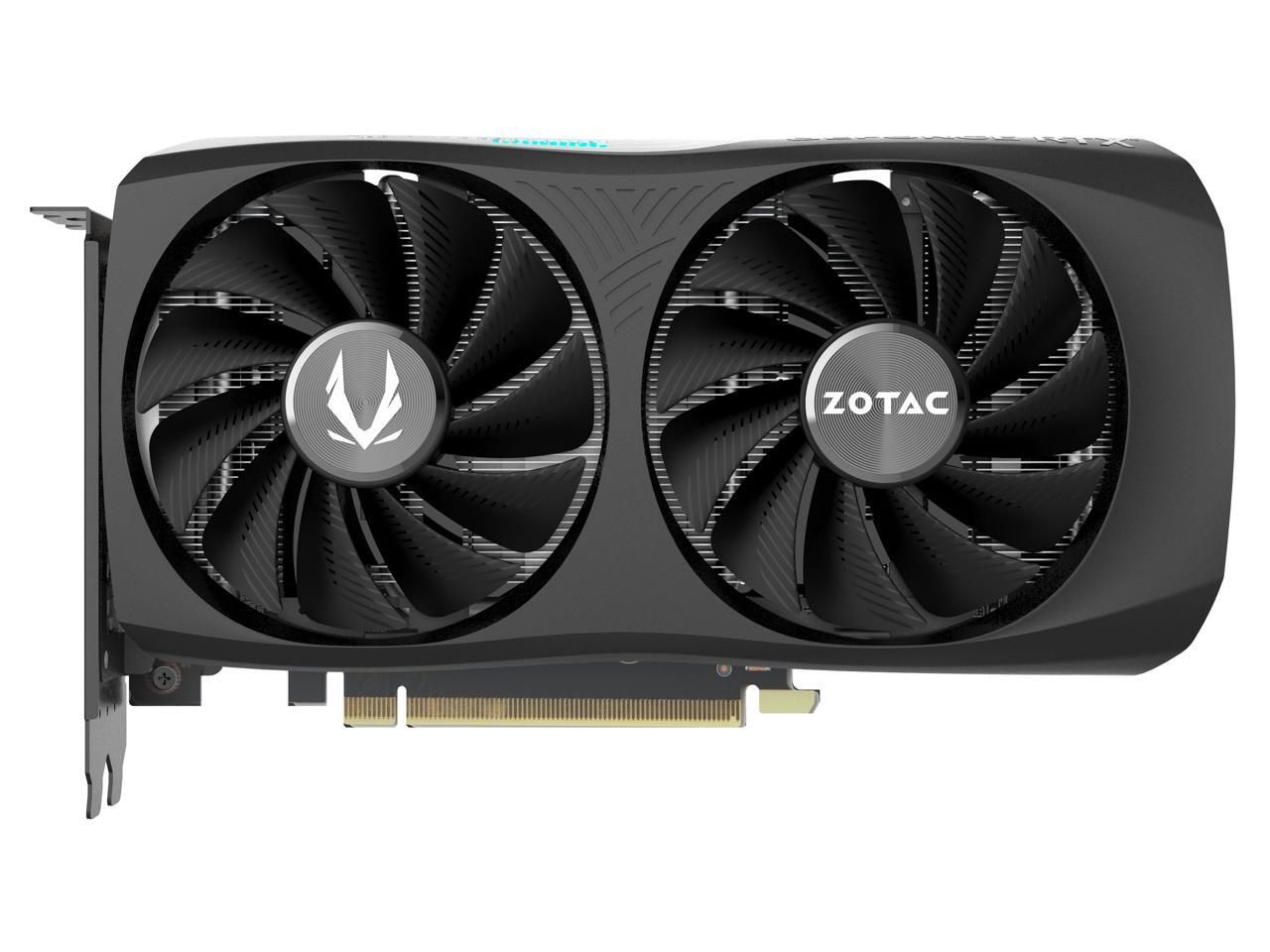

A rounded, compact dual-fan 4070 offering punchy performance in a small package. Equipped with 12GB GDDR6X memory.
