Updated 2 months ago

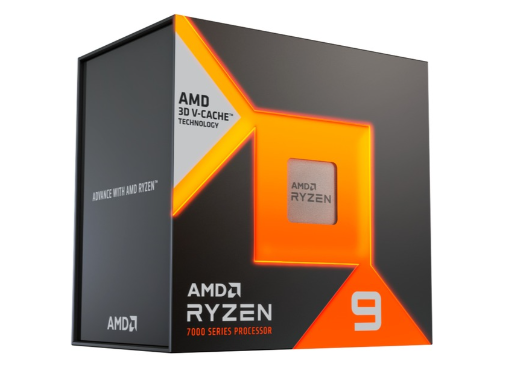

AMD Ryzen 9 7950X3D
The ultimate 16-core flagship for the AM5 platform, combining high clock speeds with 3D V-Cache for productivity and gaming.
General Information
BrandAMD
NameAMD Ryzen 9 7950X3D
Attributes
| Attribute | Specification | Notes |
|---|---|---|
| Architecture | Zen 4 (Raphael) | |
| Base Clock | 4.2 | |
| Base Clock Speed | 4.2 GHz | GHz |
| Cache L3 | 128 | |
| Cache Size | 128 MB | MB |
| Compatibility | ['AM5'] | |
| Component Type | CPU | |
| Core Count | 16 cores | cores |
| Cpu Cooler Included | False | |
| Cpu Microarchitecture Generation | AMD Zen 4 | |
| Cpu Socket | AM5 | |
| Form Factor | Desktops, Boxed Processor | |
| Included Cooler | No | |
| Integrated Gpu Model | AMD Radeon Graphics | |
| Integrated Graphics | Yes | |
| Interface Standard | ['PCIe 5.0', 'PCIe lanes (total/usable): 28/24'] | |
| Launch Date | 2023-02-28 | |
| Manufacturer | AMD | |
| Manufacturing Process | 5 nm FinFET (TSMC 5nm) | |
| Max Boost Clock | 5.7 | |
| Max Boost Clock Speed | 5.7 GHz | GHz |
| Max Memory Speed | 5200 | |
| Max Turbo Power | 162 | |
| Memory Channels | 2 | |
| Memory Support | DDR5; max official speeds listed: DDR5-5200 (various DIMM ranks/configurations) | |
| Memory Type Support | 0 | |
| Pcie Lane Count | 28 | |
| Pcie Version | PCIe 5.0 | |
| Pci Express Version | PCIe 5.0 | |
| Performance Spec | ['16 cores', '32 threads', 'Base clock: 4.2 GHz', 'Max boost: up to 5.7 GHz'] | |
| Power Requirements | 120 | |
| Price | 597 USD | USD |
| Process Node | TSMC 5nm | |
| Socket | AM5 | |
| Tdp Processor Base Power | 120 | |
| Thermal Design | ['Default TDP: 120W', 'Max operating temperature (Tjmax): 89°C'] | |
| Thermal Design Power | 120 W | W |
| Thread Count | 32 threads | threads |
| Unlocked Multiplier Overclocking | False | |
| Warranty Period | 36 |
