TUF Gaming GeForce RTX 4080 SUPER OC Edition

A more understated and compact alternative to the Strix, the TUF Gaming version focuses on durability and performance with a rugged metal shroud.

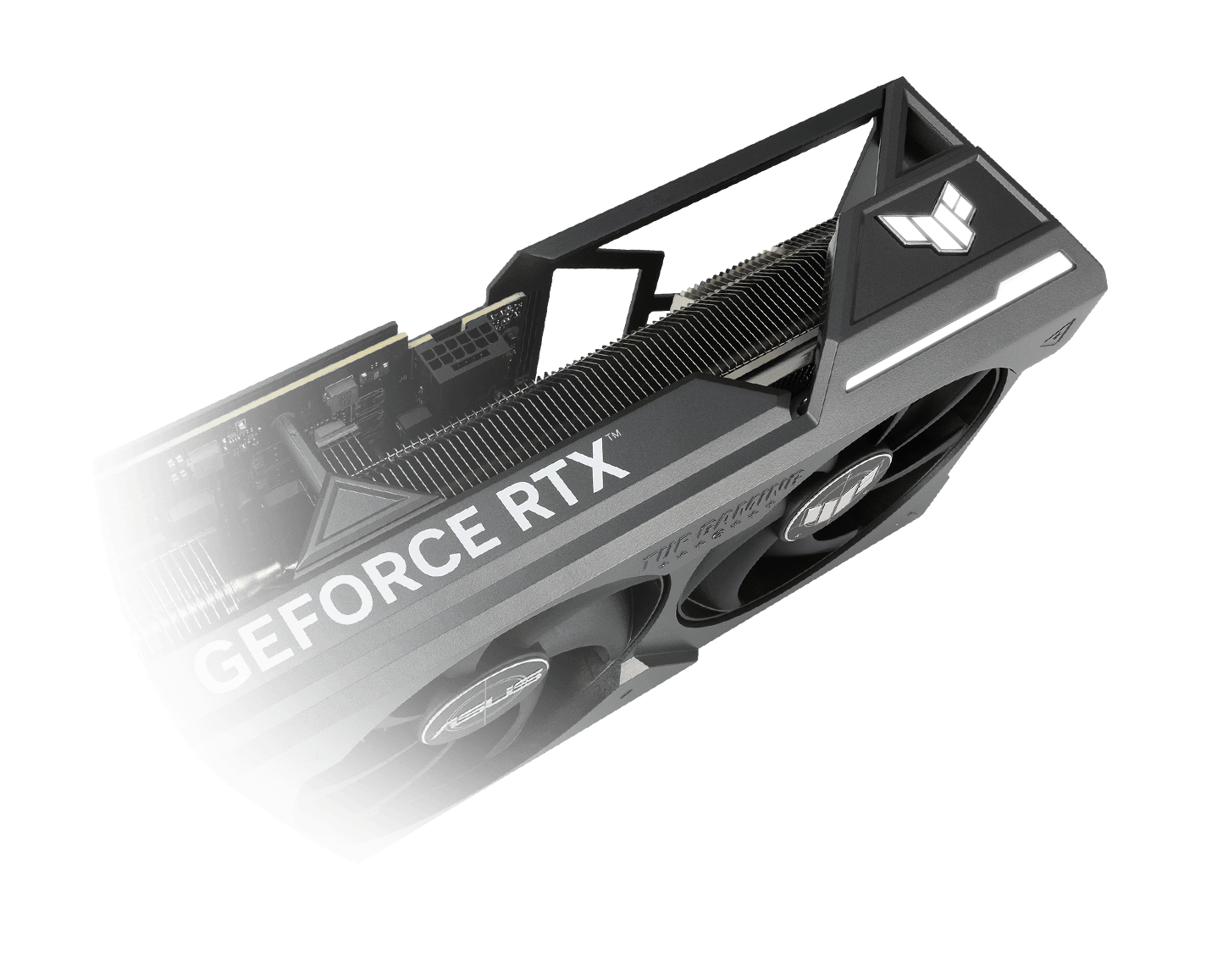

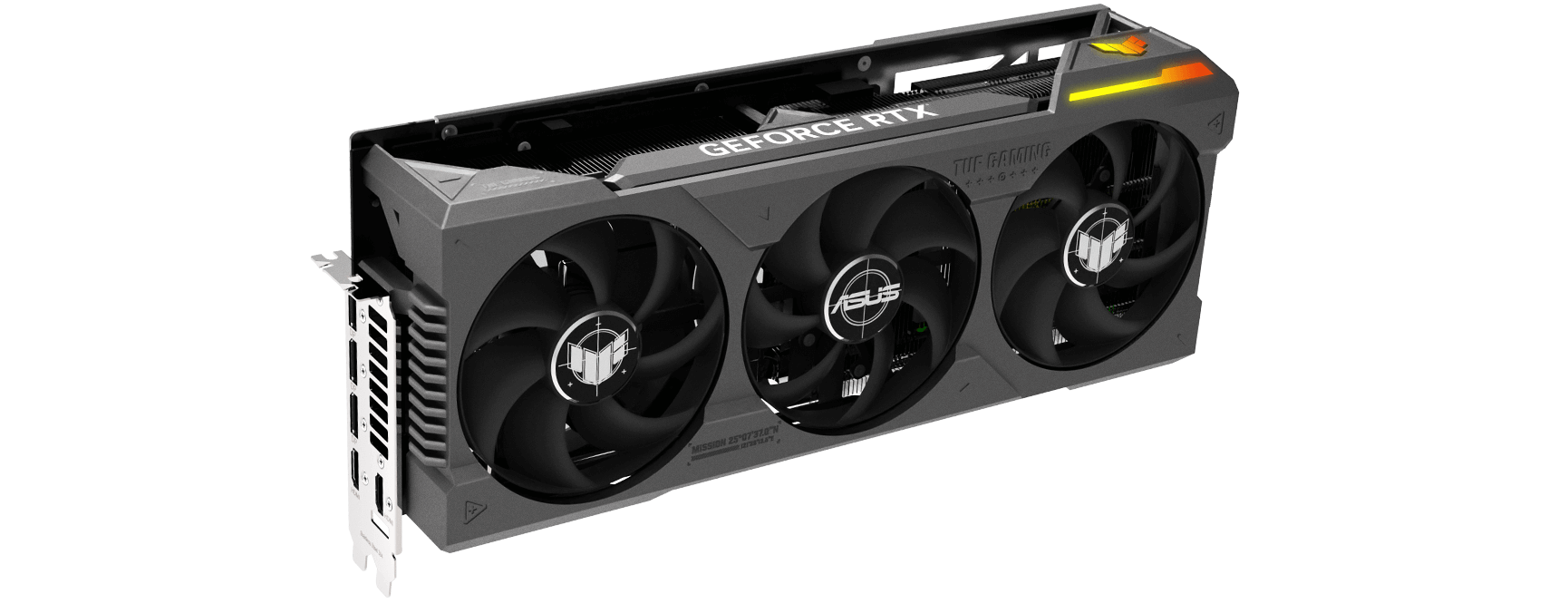

ASUS TUF Gaming GeForce RTX 4080 SUPER 16GB GDDR6X OC Edition (TUF-RTX4080S-O16G-GAMING) – product hero

General Information

BrandASUS
NameTUF Gaming GeForce RTX 4080 SUPER OC Edition

Product Highlights

Factory-Overclocked GPU

The NVIDIA GeForce RTX 4080 SUPER reaches a 2640 MHz boost clock in OC mode, with 10,240 CUDA cores and ray tracing support.

16GB High-Speed GDDR6X Memory

Its 16GB of GDDR6X memory runs at 23 Gbps on a 256-bit interface with 736 GB/s of memory bandwidth.

Triple-Fan Metal-Shroud Design

A triple-fan open-air cooler and rugged metal shroud are housed in a 348.2 mm-long, 3.65-slot card.

The ASUS TUF Gaming GeForce RTX 4080 SUPER OC Edition is a 3.65-slot graphics card with 16GB of GDDR6X memory, a triple-fan open-air cooling design, and a rugged metal shroud.

Media Reviews

Video Analysis

Attributes

AttributeSpecificationNotes
Boost Clock2640
Capacity16 GB/WGB/W
Card Length348.2
CompatibilityPCI Express 4.0
Component TypeGPU
Cooling DesignTriple-fan open-air
Dimensions348.2 x 150 x 72.6 mmmm
Display Outputs1
Encoder Decoder Features1
Form Factor3.65-slot
Form Factor Slot Width3.65
Gpu ArchitectureNVIDIA Ada Lovelace
Gpu ModelNVIDIA GeForce RTX 4080 SUPER
Interface StandardPCI Express 4.0, 16-pin power connector, HDMI 2.1a, DisplayPort 1.4a
ManufacturerASUS
Max Supported Displays4
Memory Bandwidth736
Memory Bus Width256
Pcie InterfacePCIe 4.0 x16
Performance SpecOC mode: 2640 MHz; Default mode boost: 2610 MHz, 16GB GDDR6X, Memory speed: 23 Gbps, CUDA cores: 10240, Memory interface: 256-bit, Maximum digital resolution: 7680 x 4320
Power Connectors1
Power Draw Tgp320
Power Requirements850 WW
Ray Tracing SupportYes
Recommended Psu Wattage850
Upscaling Technology1
Vram Capacity16
Vram TypeGDDR6X
Warranty Length3
