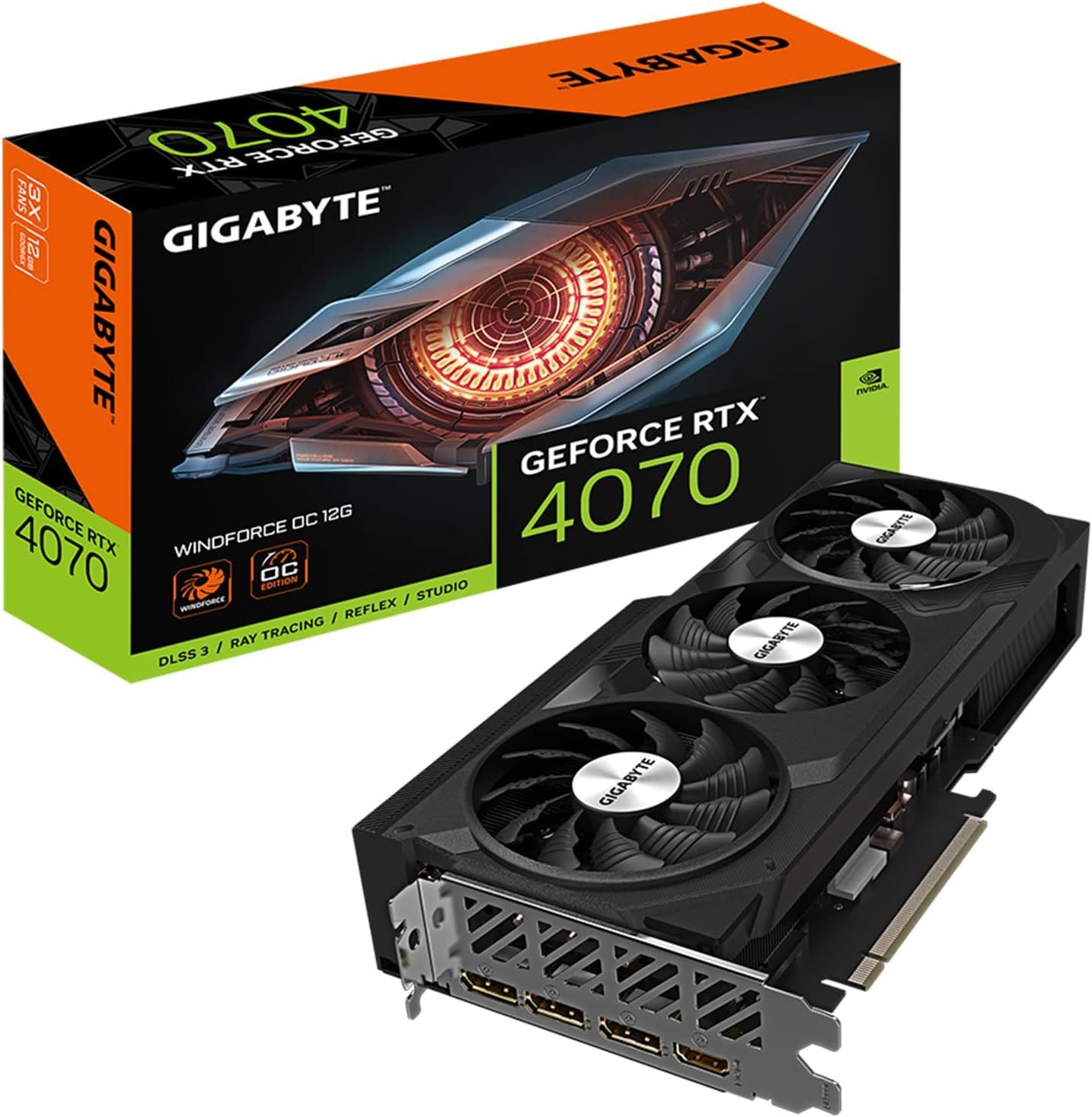

GeForce RTX 4070 WINDFORCE OC 12G

Triple-fan cooler on the highly efficient AD104 chip. Gives substantial 1440p performance with ray tracing enabled.

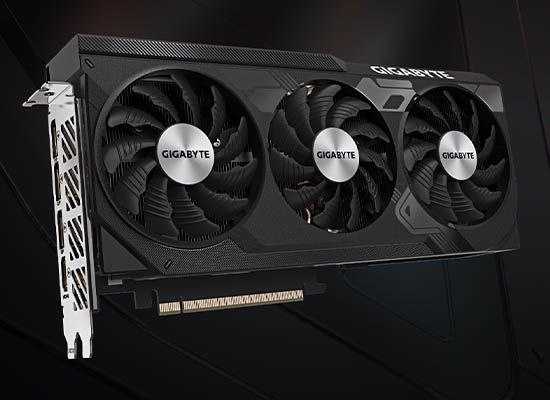

GV-N4070WF3OC-12GD (front/angled product photo)

General Information

BrandGigabyte
NameGeForce RTX 4070 WINDFORCE OC 12G

Product Highlights

Strong 1440p Ray-Traced Performance

The GeForce RTX 4070 GPU delivers substantial 1440p performance with ray tracing enabled.

Fast 12GB GDDR6X Memory

Its 12GB of GDDR6X memory runs at 21 Gbps across a 192-bit memory bus.

Triple-Fan Cooling

The open-air triple-fan cooler is designed for the highly efficient NVIDIA Ada Lovelace AD104 chip.

The Gigabyte GeForce RTX 4070 WINDFORCE OC 12G is an Ada Lovelace desktop graphics card with 12GB of GDDR6X memory, ray tracing support, PCIe 4.0 connectivity, and an open-air triple-fan cooler.

Media Reviews

Video Analysis

Attributes

AttributeSpecificationNotes
Capacity12 GB/WGB/W
CompatibilityPCIe 4.0, desktop PC graphics card, GDDR6X 12GB (192-bit)
Component TypeGPU
Cooling DesignOpen-air triple-fan
DimensionsL=261 mm, W=126 mm, H=50 mmmm
Form FactorATX
Gpu ArchitectureNVIDIA Ada Lovelace
Gpu ModelNVIDIA GeForce RTX 4070
Interface StandardPCI-E 4.0, DisplayPort 1.4a, HDMI 2.1a, 8-pin power connector
ManufacturerGigabyte
Max Supported Displays4
Memory Bus Width192
Pcie InterfacePCIe 4.0 x16
Performance SpecCore clock: 2490 MHz, CUDA cores: 5888, Memory clock: 21 Gbps, Digital max resolution: 7680x4320, Card bus: PCI-E 4.0
Power Requirements650 WW
Ray Tracing SupportYes
Vram Capacity12
Vram TypeGDDR6X
