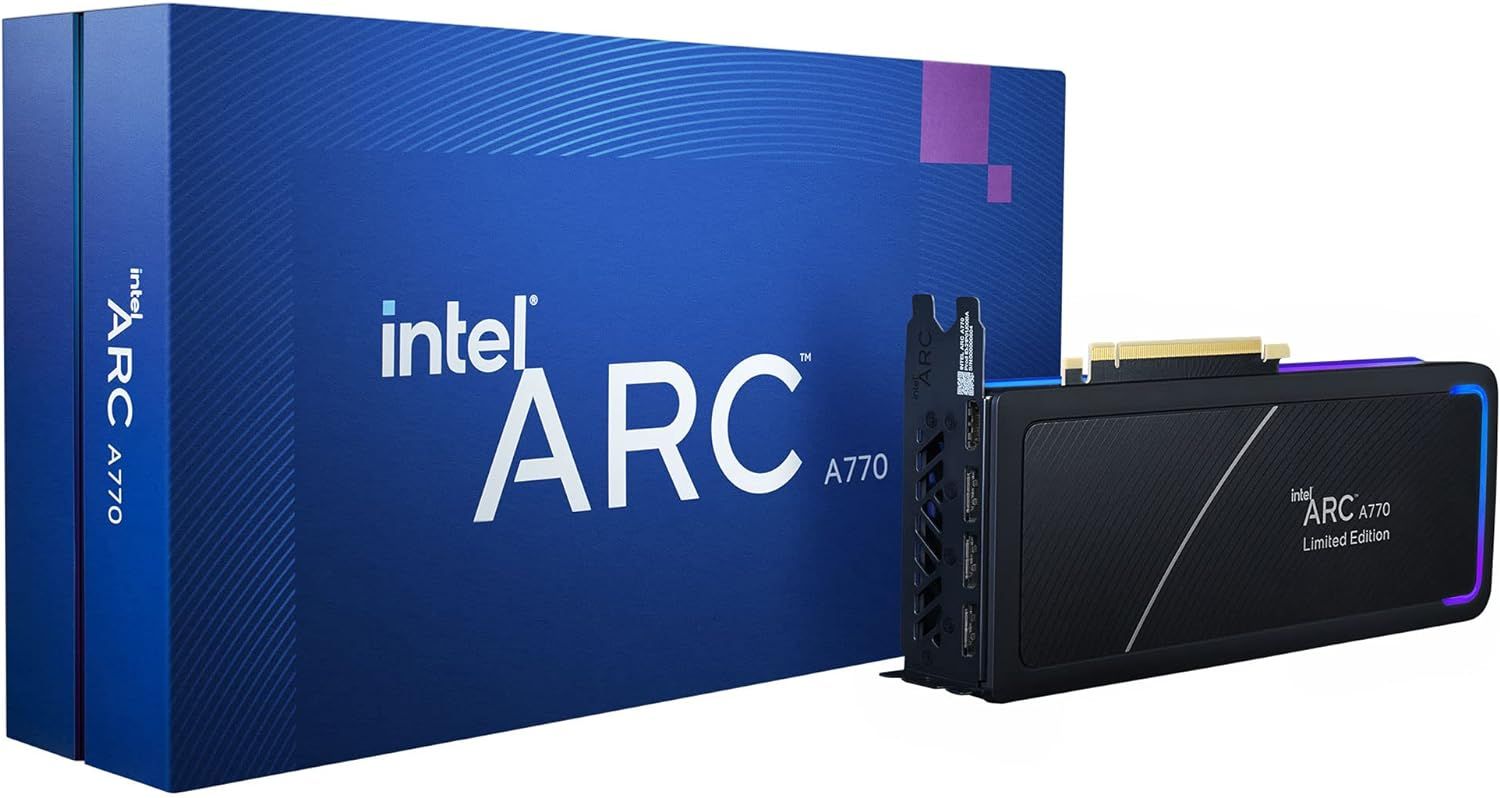

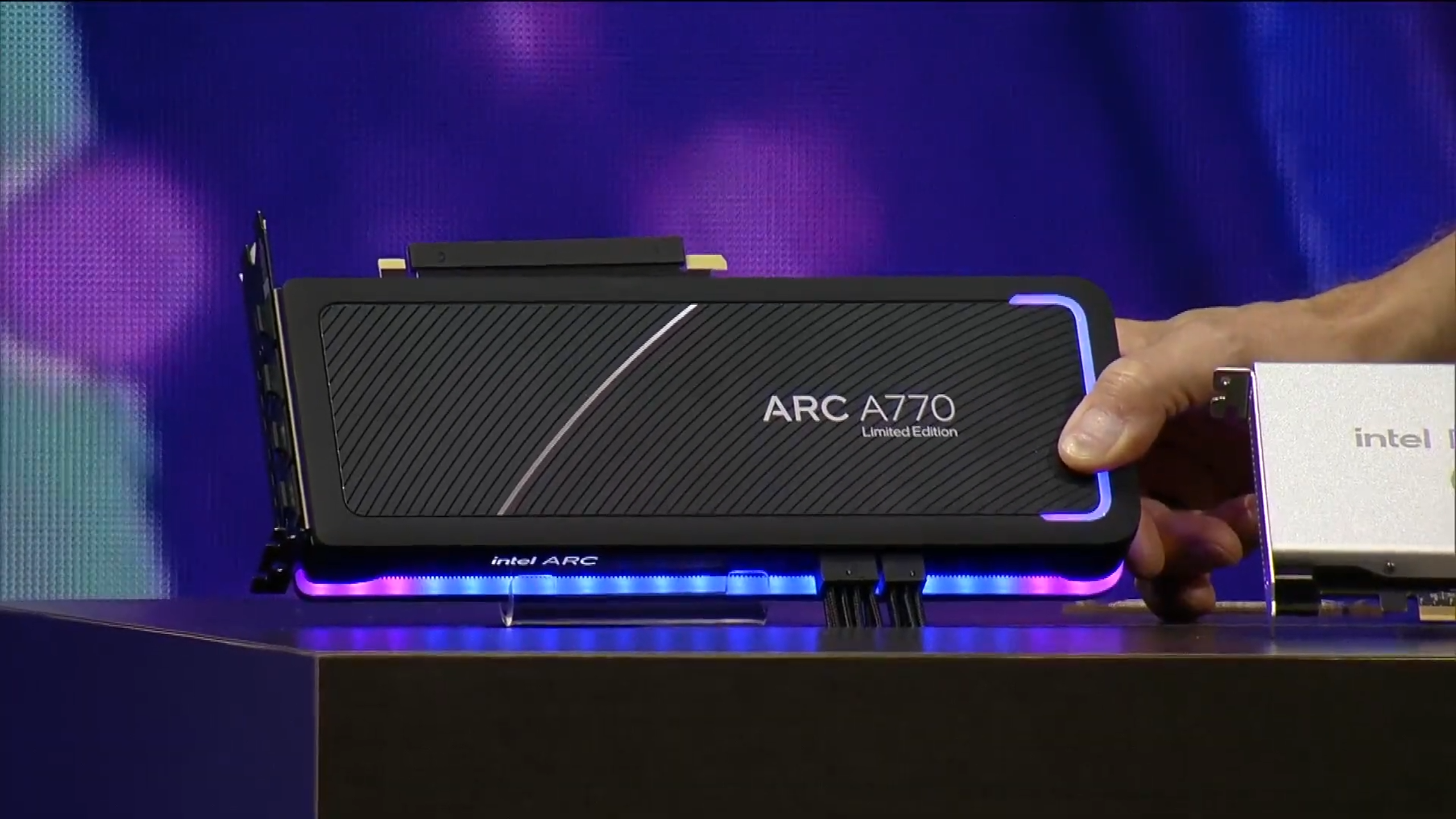

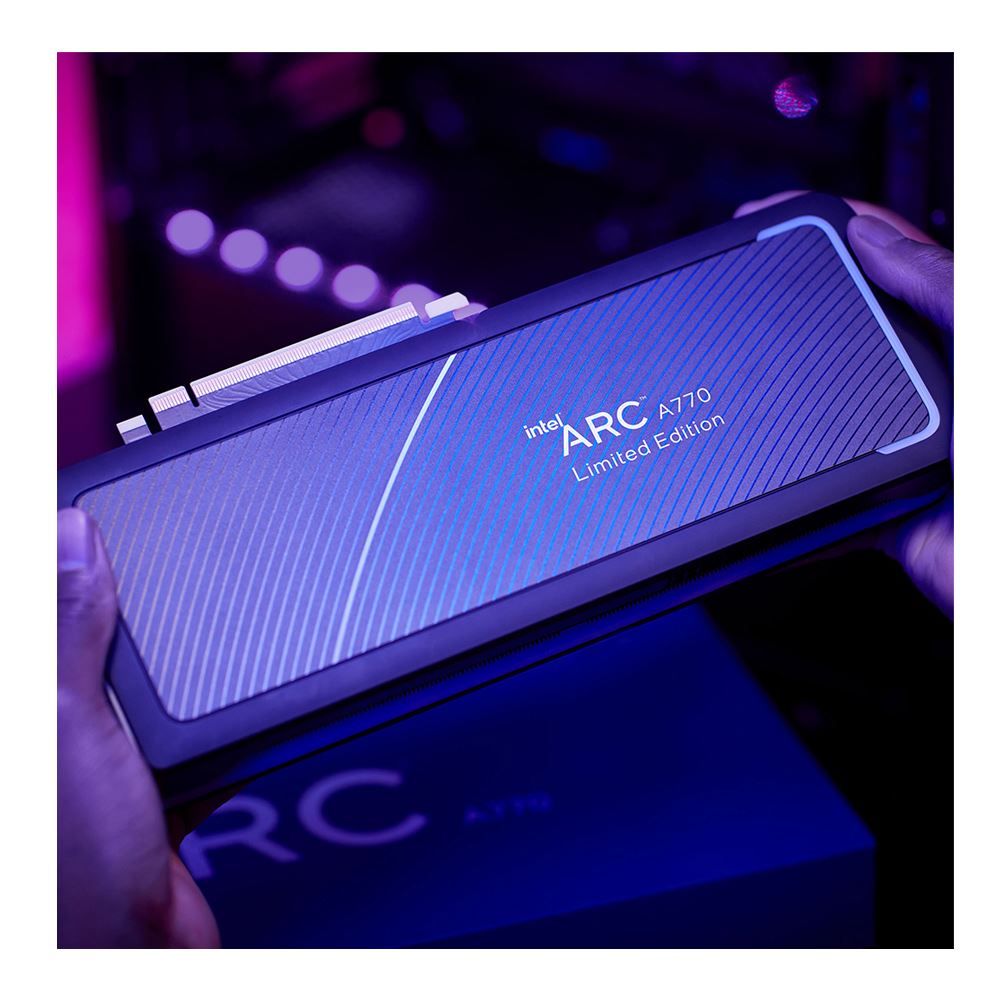

Arc A770 Limited Edition 16GB GDDR6
Intel's flagship desktop GPU, offering 16GB of VRAM and impressive productivity performance, especially in video editing.
General Information
BrandIntel
NameArc A770 Limited Edition 16GB GDDR6
Attributes
| Attribute | Specification | Notes |
|---|---|---|
| Boost Clock | 2100 | |
| Capacity | 16 GB/W | GB/W |
| Card Length | 267 | |
| Compatibility | PCIe 4.0 x16, Desktop, GDDR6, 256-bit memory interface | |
| Component Type | GPU | |
| Cooling Design | Open-air dual-fan | |
| Dimensions | Length (without I/O bracket): 268.6 mm, Length (with I/O bracket): 279.9 mm, Width (with shroud): 98.4 mm, Height (with shroud): 40.81 mm | mm |
| Display Outputs | 1 | |
| Encoder Decoder Features | 1 | |
| Form Factor | Dual-slot | |
| Form Factor Slot Width | 2 | |
| Gpu Architecture | Intel Alchemist | |
| Gpu Model | Intel Arc A770 | |
| Interface Standard | PCIe 4.0 x16, HDMI 2.1, DisplayPort 2.0, eDP 1.4, DP 2.0 up to UHBR 10 | |
| Manufacturer | Intel | |
| Max Supported Displays | 4 | |
| Memory Bandwidth | 560 | |
| Memory Bus Width | 256 | |
| Pcie Interface | PCIe 4.0 x16 | |
| Performance Spec | Base clock: 2100 MHz, Boost clock: 2400 MHz, Xe HPG architecture (DG2-512), Ray tracing enabled (Ray Tracing Units: 32), GPU peak TOPS (Int8): 262 | |
| Power Connectors | 1 | |
| Power Draw Tgp | 225 | |
| Power Requirements | 225 W | W |
| Price | 279.99 | USD |
| Ray Tracing Support | Yes | |
| Recommended Psu Wattage | 600 | |
| Upscaling Technology | 1 | |
| Vram Capacity | 16 | |
| Vram Type | GDDR6 | |
| Warranty Length | 3 | |
| Warranty Period | 36 months | months |
