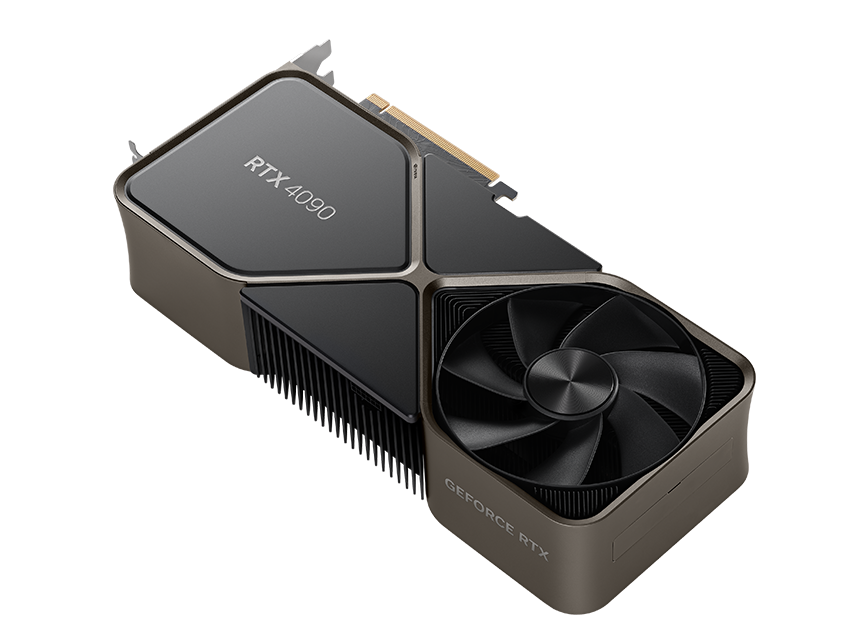

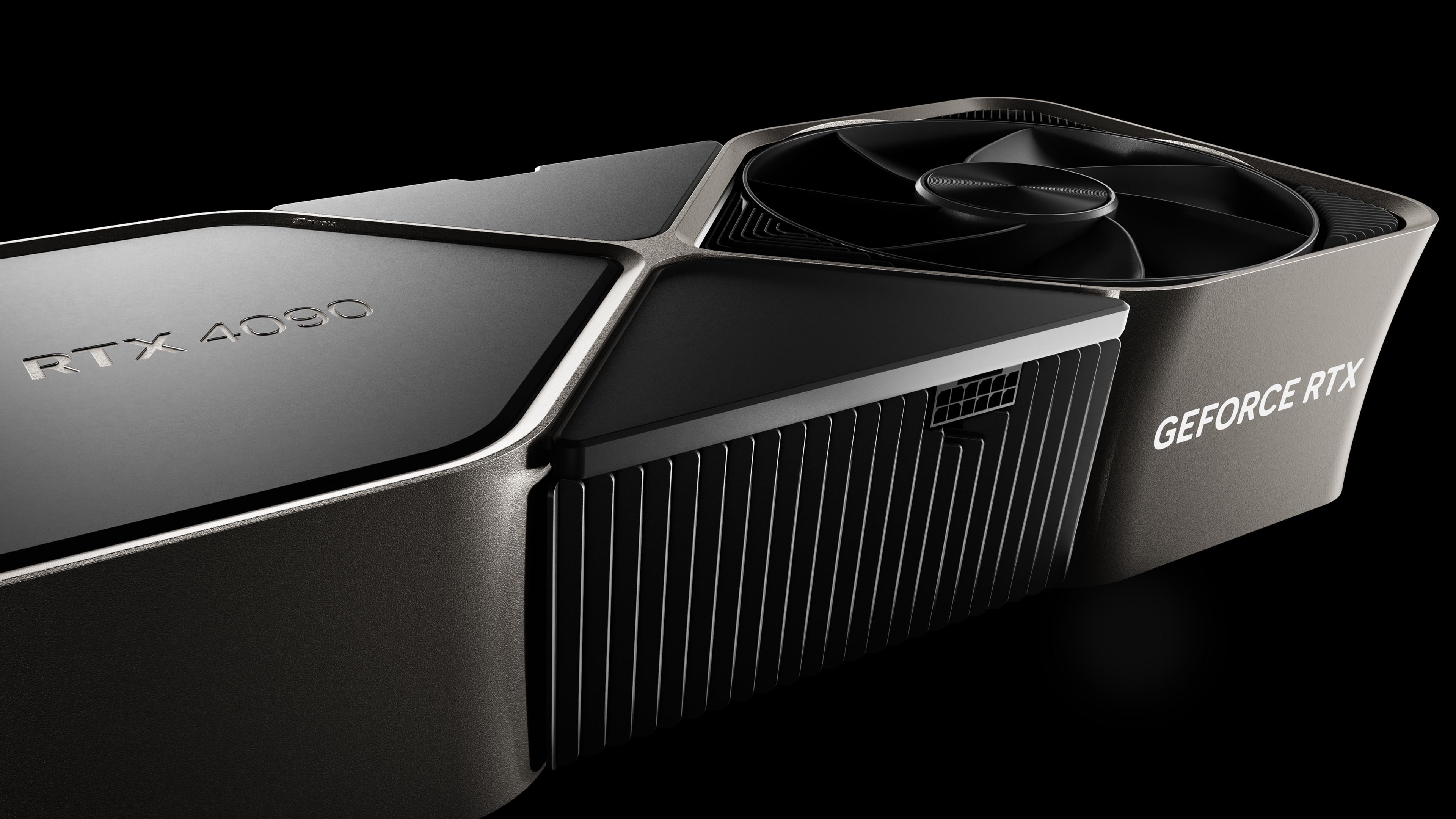

GeForce RTX 4090 Founders Edition
The 'gold standard' reference design from NVIDIA, featuring a unique dual-axial flow-through cooling design and a compact, premium aesthetic.
General Information
BrandNVIDIA
NameGeForce RTX 4090 Founders Edition
Attributes
| Attribute | Specification | Notes |
|---|---|---|
| Boost Clock | 2520 | |
| Capacity | 24 GB/W | GB/W |
| Card Length | 304 | |
| Compatibility | PCI Express 4.0 x16, Resizable BAR supported | |
| Component Type | GPU | |
| Cooling Design | Dual-axial flow-through cooling design | |
| Dimensions | Length: 304 mm, Width: 137 mm, Slot width/slots: 3-slot (61 mm) | mm |
| Display Outputs | 1 | |
| Encoder Decoder Features | 1 | |
| Form Factor | 3-slot dual/Founders Edition reference design (ATX class) | |
| Form Factor Slot Width | 3 | |
| Gpu Architecture | NVIDIA Ada Lovelace | |
| Gpu Model | NVIDIA GeForce RTX 4090 | |
| Interface Standard | PCIe Gen 4, HDMI 2.x (HDMI(2)), DisplayPort(3), NVIDIA NVENC: 2x 8th Generation, NVIDIA NVDEC: 5th Generation | |
| Manufacturer | NVIDIA | |
| Max Supported Displays | 4 | |
| Memory Bandwidth | 1008 | |
| Memory Bus Width | 384 | |
| Pcie Interface | PCIe 4.0 x16 | |
| Performance Spec | CUDA cores: 16384, Boost clock: 2.52 GHz, Base clock: 2.23 GHz, Shader throughput (listed as): Ada Lovelace 83 TFLOPS, Ray tracing cores: 3rd Generation, Tensor cores (AI): 4th Generation 1321 AI TOPS, Memory: 24 GB GDDR6X, Memory interface width: 384-bit, PCIe: PCI Express Gen 4 | |
| Power Connectors | 1 | |
| Power Draw Tgp | 450 | |
| Power Requirements | 450 W | W |
| Price | 1,699.99 | USD |
| Ray Tracing Support | Yes | |
| Recommended Psu Wattage | 850 | |
| Thermal Design | Maximum GPU temperature: 90 C | |
| Upscaling Technology | 1 | |
| Vram Capacity | 24 | |
| Vram Type | GDDR6X | |
| Warranty Length | 3 | |
| Warranty Period | 12 months | months |
