Compact Fit for Smaller Builds
The 225.5 x 123.2 x 40.1 mm, 2.2-slot design is suited to compatible ITX and Micro-ATX systems.
If you buy through affiliate links, we may earn commissions, which help support our site.
Updated 5 months ago
A compact and distinctive dual-fan cooler design. Ideal for ITX and Micro-ATX builds while easily handling maxed-out 1080p titles.

The 225.5 x 123.2 x 40.1 mm, 2.2-slot design is suited to compatible ITX and Micro-ATX systems.
The GeForce RTX 4060 Ti GPU provides 4,352 CUDA cores, a 2,535 MHz boost clock, DLSS 3 support, and ray tracing.
DisplayPort 1.4a and HDMI 2.1a outputs support up to four displays.

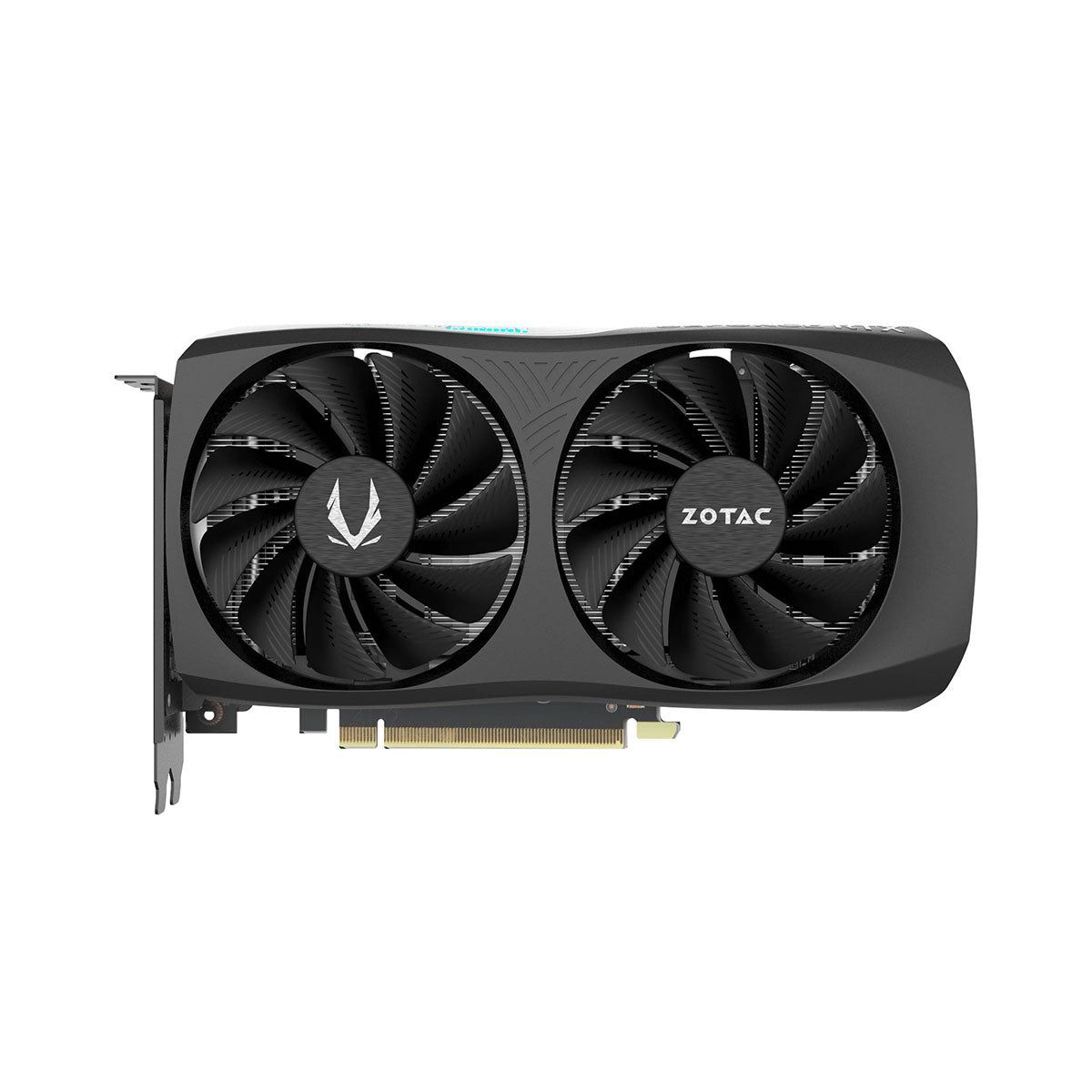

The ZOTAC Gaming GeForce RTX 4060 Ti Twin Edge 8GB is a compact 2.2-slot graphics card built on NVIDIA Ada Lovelace architecture, with 8GB of GDDR6 memory, a dual-fan open-air cooler, and support for DLSS 3 and ray tracing.
The reviewer found the Zotac Twin Edge to be a solid, silent, and well-performing graphics card, though they were disappointed by the RTX 4060 Ti series' overall performance gains compared to its predecessor.
The reviewer described the card as well-made, but noted they had expected a better price-to-performance ratio.
The review highlights that while the card is a potent Full-HD performer with excellent cooling and warranty, the high price tag for an 8GB card makes its value proposition questionable.
The reviewer considered the card a well-built, compact, and powerful option for 1080p and 1440p gaming, praising its value despite the 8GB VRAM limitation.
373,207 views • 3 years ago
47,257 views • Streamed 3 years ago
21,287 views • 1 year ago
19,796 views • 1 year ago
2,421 views • 3 years ago
39 views • 1 year ago
| Attribute | Specification | Notes |
|---|---|---|
| Capacity | 8 GB/W | GB/W |
| Compatibility | PCI Express 4.0 x8, Windows 10 64-bit (v1809 November 2018 or later), Windows 11 64-bit | |
| Component Type | GPU | |
| Cooling Design | Open-air dual-fan | |
| Dimensions | 225.5 x 123.2 x 40.1 | mm |
| Form Factor | Compact 2.2-slot | |
| Gpu Architecture | NVIDIA Ada Lovelace | |
| Gpu Model | NVIDIA GeForce RTX 4060 Ti | |
| Interface Standard | PCI Express 4.0 x8, 1x 8-pin PCIe power input, DisplayPort 1.4a, HDMI 2.1a | |
| Manufacturer | ZOTAC | |
| Max Supported Displays | 4 | |
| Memory Bus Width | 128 | |
| Pcie Interface | PCIe 4.0 x8 | |
| Performance Spec | GeForce RTX 4060 Ti (NVIDIA Ada Lovelace), CUDA cores: 4352, Boost clock: 2535 MHz, Memory clock: 18.0 Gbps, DLSS 3 support, Ray tracing (full ray tracing) | |
| Power Draw Tgp | 160 | |
| Power Requirements | 160 W | W |
| Ray Tracing Support | Yes | |
| Recommended Psu Wattage | 500 | |
| Thermal Design | 160 W max power consumption (thermal design power) | |
| Vram Capacity | 8 | |
| Vram Type | GDDR6 | |
| Warranty Period | 36 months | months |
