High-Capacity 24GB GDDR6 Memory
A 384-bit memory bus and 960 GB/s bandwidth support the Radeon RX 7900 XTX GPU’s 24GB of GDDR6 memory.
If you buy through affiliate links, we may earn commissions, which help support our site.
Updated 5 months ago

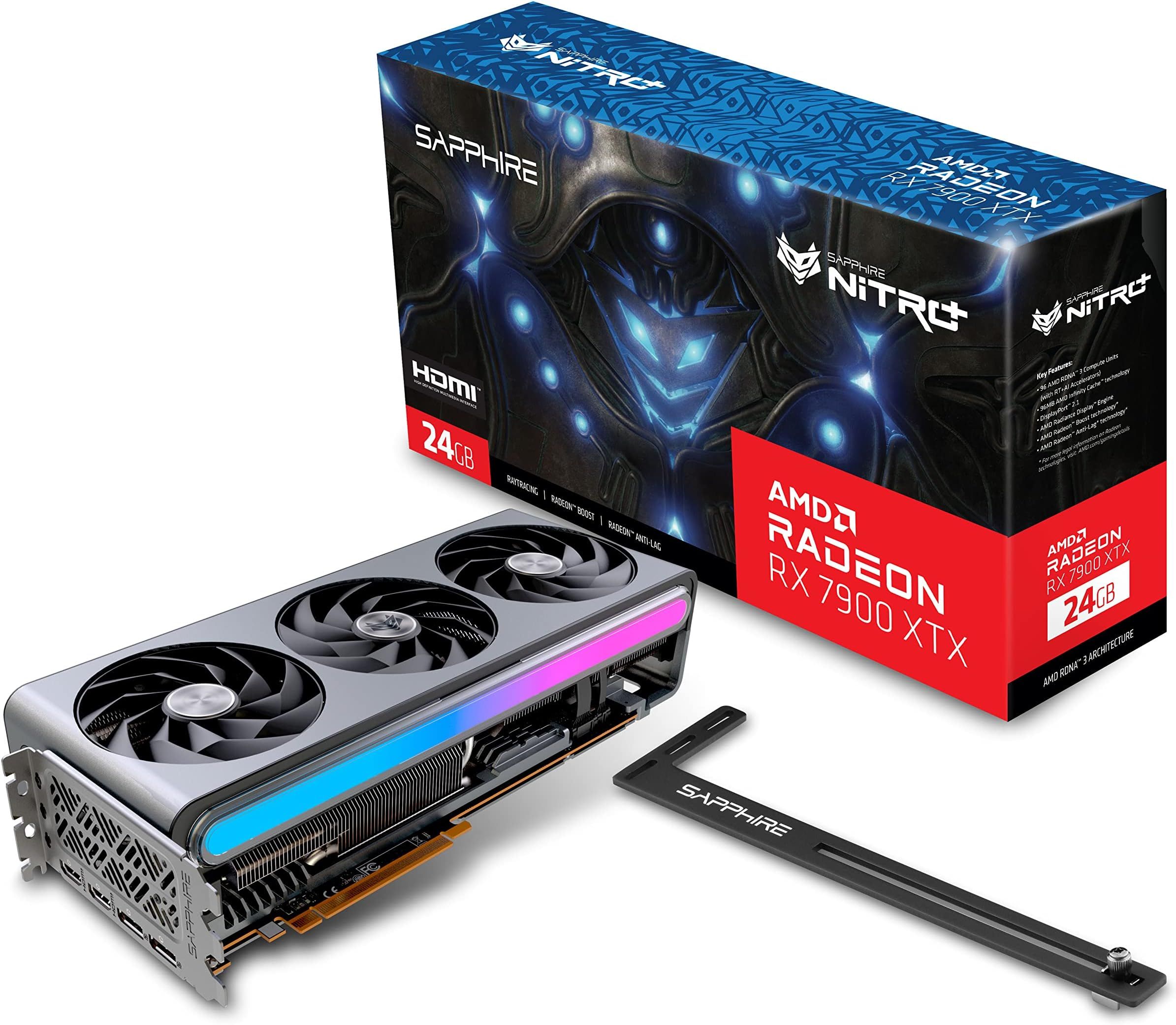

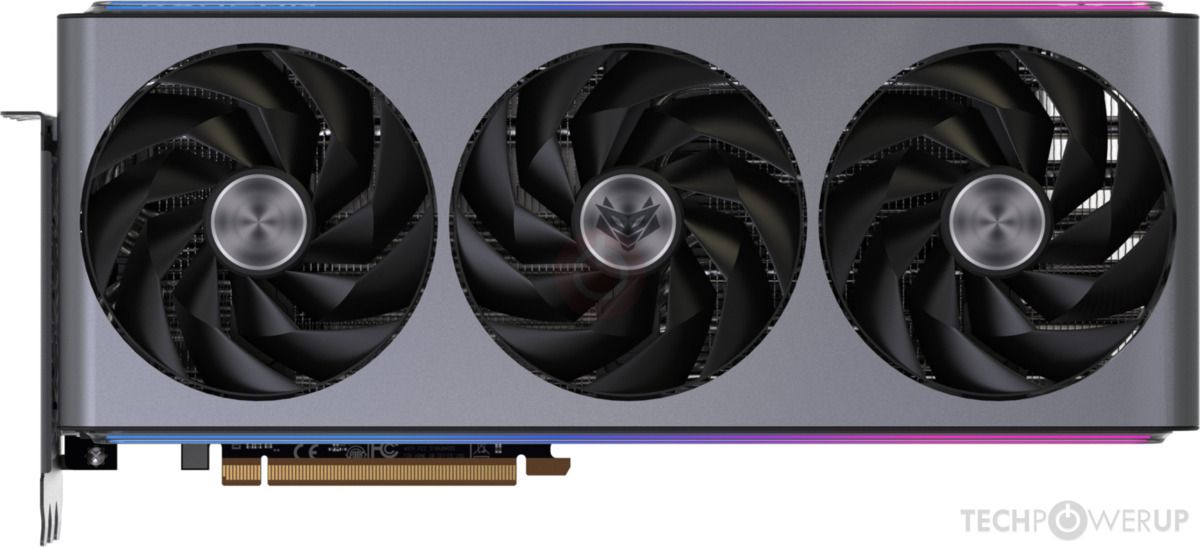

NITRO+ AMD Radeon RX 7900 XTX Vapor-X
AMD's flagship RDNA 3 GPU paired with Sapphire's legendary Vapor-X cooling chamber and massive heatsink. Crushes 4K gaming without breaking a sweat.
General Information
BrandSapphire
NameNITRO+ AMD Radeon RX 7900 XTX Vapor-X
Product Highlights
Vapor-X Cooling Design
Sapphire pairs a Vapor-X cooling chamber with a massive heatsink to manage the card’s 420W total board power.
Modern Multi-Display Connectivity
Two HDMI 2.1 and two DisplayPort 2.1 outputs support up to four displays, alongside a PCIe 4.0 x16 interface.
The Sapphire NITRO+ AMD Radeon RX 7900 XTX Vapor-X is an RDNA 3 graphics card with 24GB of GDDR6 memory, Vapor-X cooling, a PCIe 4.0 x16 interface, and support for up to four displays.
Media Reviews
PCWorld
Sapphire Nitro+ Radeon RX 7900 XTX Vapor-X review: Big and beautiful
The reviewer concludes the card is the fastest 7900 XTX they tested, praising its cooling, silent operation, and high-end design, while noting its massive size and high power consumption as potential drawbacks. It is described as a highly recommended option for high-end 4K and 1440p gaming.
Read review
PC Perspective
Sapphire AMD Radeon RX 7900 XTX Nitro Plus Review
The review characterizes the card as a well-engineered, ultimate version of the RX 7900 XTX that provides excellent thermals and low noise output, though it cautions that the high power draw yields only modest performance gains over the reference model.
Read review
TechPowerUp
Sapphire Radeon RX 7900 XTX Nitro+ Review - Maxing out 3x 8-Pin
This review highlights the card's factory overclock, premium Pantheon+ cooling solution with removable fans, and various gamer-friendly features like dual-BIOS and ARGB headers, positioning it as a top-tier custom flagship.
Read review
Video Analysis
13:27
Sapphire Nitro+ VaporX RX 7900 XTX Review
143,622 views • 3 years ago
17:02
The Ultimate Sapphire Nitro+ AMD GPU Showdown: 9070 XT vs 7900 XTX
114,591 views • 1 year ago
15:52
Sapphire RX 7900 XTX Nitro+ Review [Overclocking | Power | Thermals]
95,566 views • 3 years ago
3:24
Sapphire Nitro+ RX 7900 XTX Honest Review!
33,937 views • 2 years ago
1:15:24
Sapphire RX 7900 XTX Nitro+ Vapor-X Review, plus power, temps, and more
31,884 views • Streamed 3 years ago
2:45
🔥 Sapphire Nitro+ RX 7900 XTX Vapor-X Review | 24GB GDDR6 Beast for 4K & Beyond! 🚀
41 views • 1 year ago
Attributes
| Attribute | Specification | Notes |
|---|---|---|
| Capacity | 24 GB/W | GB/W |
| Compatibility | PCI Express 4.0 x16 | |
| Component Type | GPU (graphics card) | |
| Cooling Design | Vapor-X cooling chamber and massive heatsink | |
| Dimensions | Length x width x height (ATX dimension): 320 x 135.75 x 71.6 mm | mm |
| Encoder Decoder Features | -1 | |
| Form Factor | 3.5-slot, ATX Dimension | |
| Gpu Architecture | AMD RDNA 3 | |
| Gpu Model | AMD Radeon RX 7900 XTX | |
| Interface Standard | PCIe 4.0 x16, 2 x HDMI 2.1, 2 x DisplayPort 2.1 | |
| Manufacturer | Sapphire | |
| Max Supported Displays | 4 | |
| Memory Bandwidth | 960 | |
| Memory Bus Width | 384 | |
| Pcie Interface | PCIe 4.0 x16 | |
| Performance Spec | Boost clock: up to 2680 MHz, Game clock: up to 2510 MHz, Stream processors: 6144, RDNA 3 architecture, Ray accelerators: 96, Memory: 24GB GDDR6 (20 Gbps effective), Memory bus: 384-bit | |
| Power Requirements | 420 W | W |
| Ray Tracing Support | Yes | |
| Thermal Design | Total Board Power: 420W | |
| Upscaling Technology | AMD FSR | |
| Vram Capacity | 24 | |
| Vram Type | GDDR6 | |
| Warranty Period | 24 months | months |
