Gaming GeForce RTX 4060 8GB Solo

An ultra-compact single-fan RTX 4060 designed for extreme Mini-ITX cases. Draws very little power.

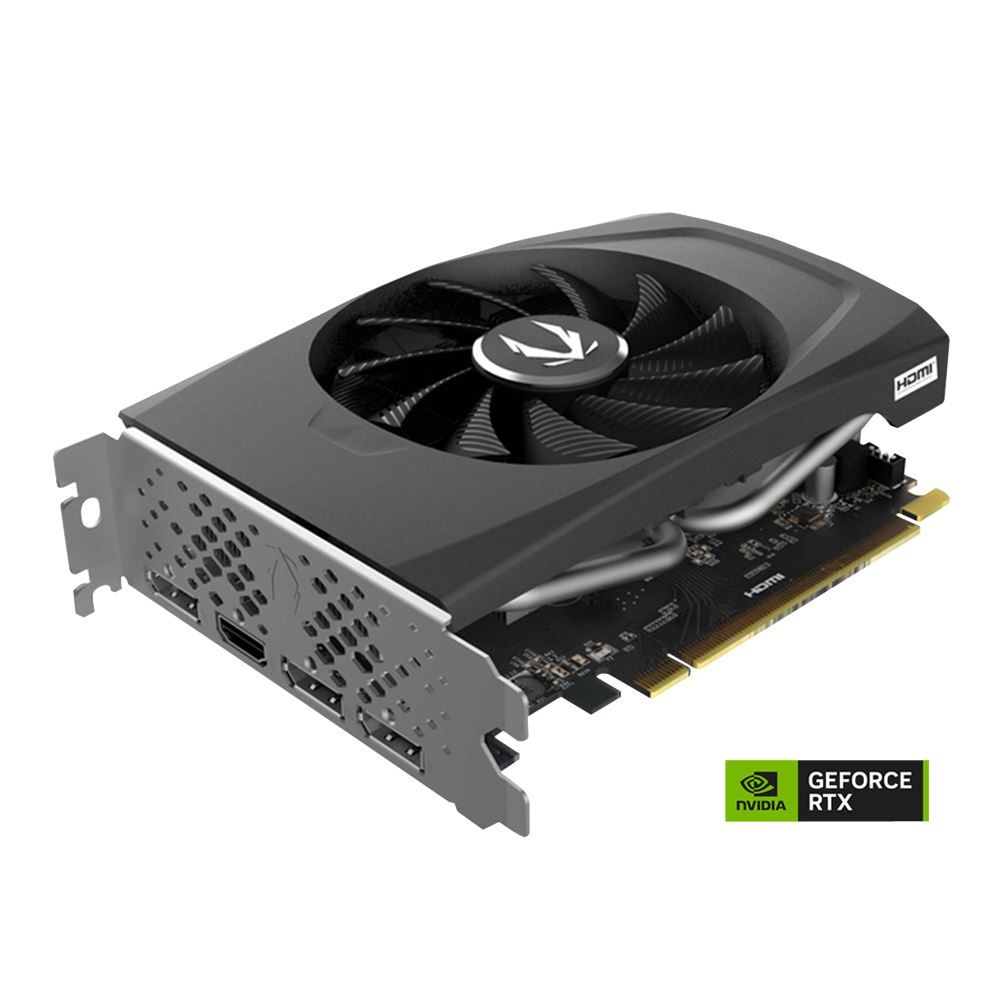

Zotac NVIDIA GeForce RTX 4060 Solo Single Fan 8GB GDDR6 (front zoom)

General Information

BrandZOTAC

NameGaming GeForce RTX 4060 8GB Solo

Product Highlights

Compact Mini-ITX Fit

At 163 x 117.6 x 39.5 mm, this 2-slot card is designed for space-constrained Mini-ITX cases.

115W Power Draw

The GPU has a maximum power consumption of 115W, uses one 8-pin PCIe power input, and carries a 500W recommended PSU rating.

Four-Display Connectivity

Three DisplayPort 1.4a outputs and one HDMI 2.1a output support up to four displays.

The ZOTAC Gaming GeForce RTX 4060 8GB Solo is an ultra-compact, 2-slot graphics card with NVIDIA Ada Lovelace architecture, 8GB of GDDR6 memory, and a single-fan cooling design.

Media Reviews

Nvidia RTX 4060 Review – Testing ZOTAC GAMING’s RTX 4060 SOLO 163mm Long GPU for the Small Form Factor Market – SFF.Network | SFF.Network

The reviewer commends the ZOTAC Gaming GeForce RTX 4060 8GB Solo for its compact design, excellent cooling performance, and quiet operation, noting it is well-suited for small form factor builds. However, they conclude that while the card itself is highly recommended, it is ultimately held back by the limitations of the underlying RTX 4060 GPU architecture.

Video Analysis

A ZOTAC GAMING GeForce RTX 4060 8GB SOLO Quick Unboxing

36,813 views • 3 years ago

It's What We Expected...GeForce RTX 4060 Review

35,508 views • 3 years ago

Zotac Gaming RTX 4060 Solo Unboxing and Benchmarks

29,135 views • 2 years ago

Nvidia 4060 Solo Single Fan by Zotac Unboxing Video 360 View

5,192 views • 3 years ago

Ultimate Gaming Experience! GeForce RTX 4060 8GB OC Spider-Man Review - Swing into Action!

2,823 views • 3 years ago

Zotac Gaming GeForce RTX 4060 8GB Solo DLSS 3: Is This the Best Compact Powerhouse for Gamers?

528 views • 2 years ago

Attributes

Attribute	Specification	Notes
Capacity	8 GB/W	GB/W
Compatibility	PCI Express 4.0 x8
Component Type	GPU
Cooling Design	Single-fan
Dimensions	Length: 163 mm, Height: 117.6 mm, Width: 39.5 mm (2-slot)	mm
Form Factor	2-slot
Form Factor Slot Width	2
Gpu Architecture	NVIDIA Ada Lovelace
Gpu Model	NVIDIA GeForce RTX 4060
Interface Standard	PCI Express 4.0 x8, 8-pin PCIe power input, 3 x DisplayPort 1.4a, 1 x HDMI (HDMI 2.1a)
Manufacturer	ZOTAC
Max Supported Displays	4
Memory Bus Width	128
Pcie Interface	PCIe 4.0 x8
Performance Spec	Boost clock: 2460 MHz, CUDA cores: 3072, Engine boost range: 1830–2460 MHz
Power Draw Tgp	115
Power Requirements	115 W	W
Ray Tracing Support	Yes
Recommended Psu Wattage	500
Thermal Design	Max power consumption: 115W
Vram Capacity	8
Vram Type	GDDR6
Warranty Period	36 months	months
