Compact Dual-Slot Design
The 199 x 120 x 41 mm card uses a compact dual-slot form factor suited to space-conscious builds.
If you buy through affiliate links, we may earn commissions, which help support our site.
Updated 5 months ago
A highly compact and efficient 1080p GPU. Runs entirely off a single 8-pin PCIe cable with exceptional thermal performance.

The 199 x 120 x 41 mm card uses a compact dual-slot form factor suited to space-conscious builds.
Its dual-fan thermal design includes Zero Frozr, which stops the fans at low temperatures.

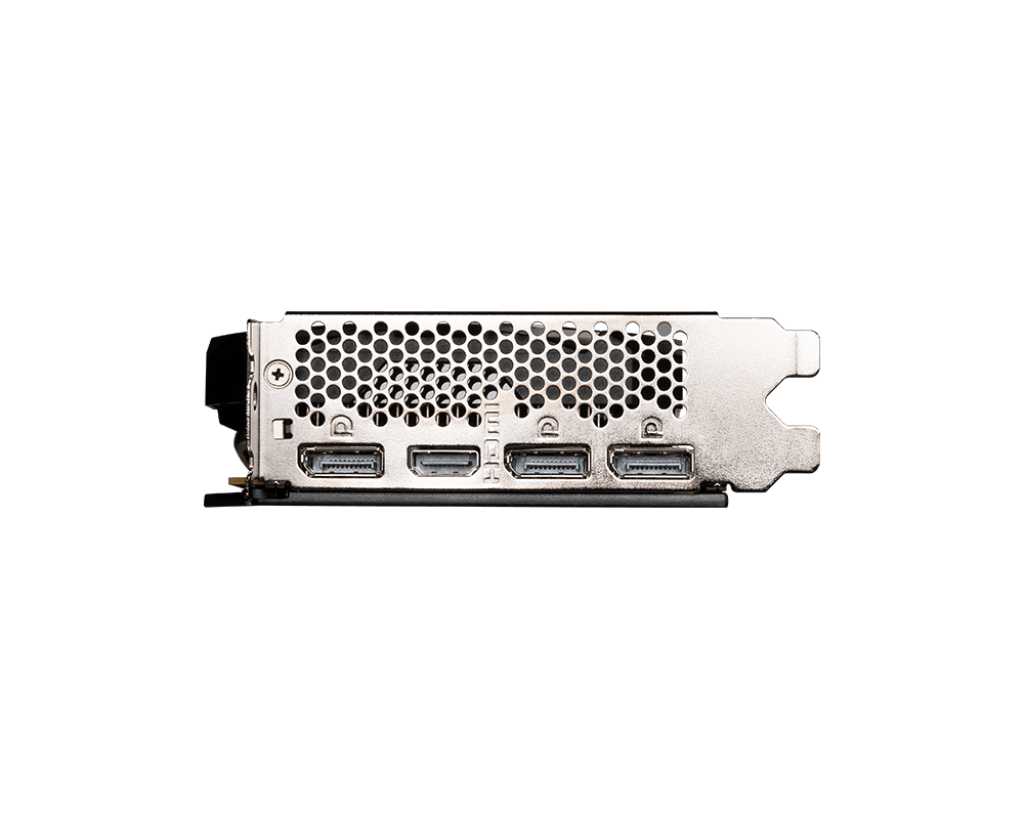

Three DisplayPort 1.4a outputs and one HDMI 2.1a output provide four display connections.

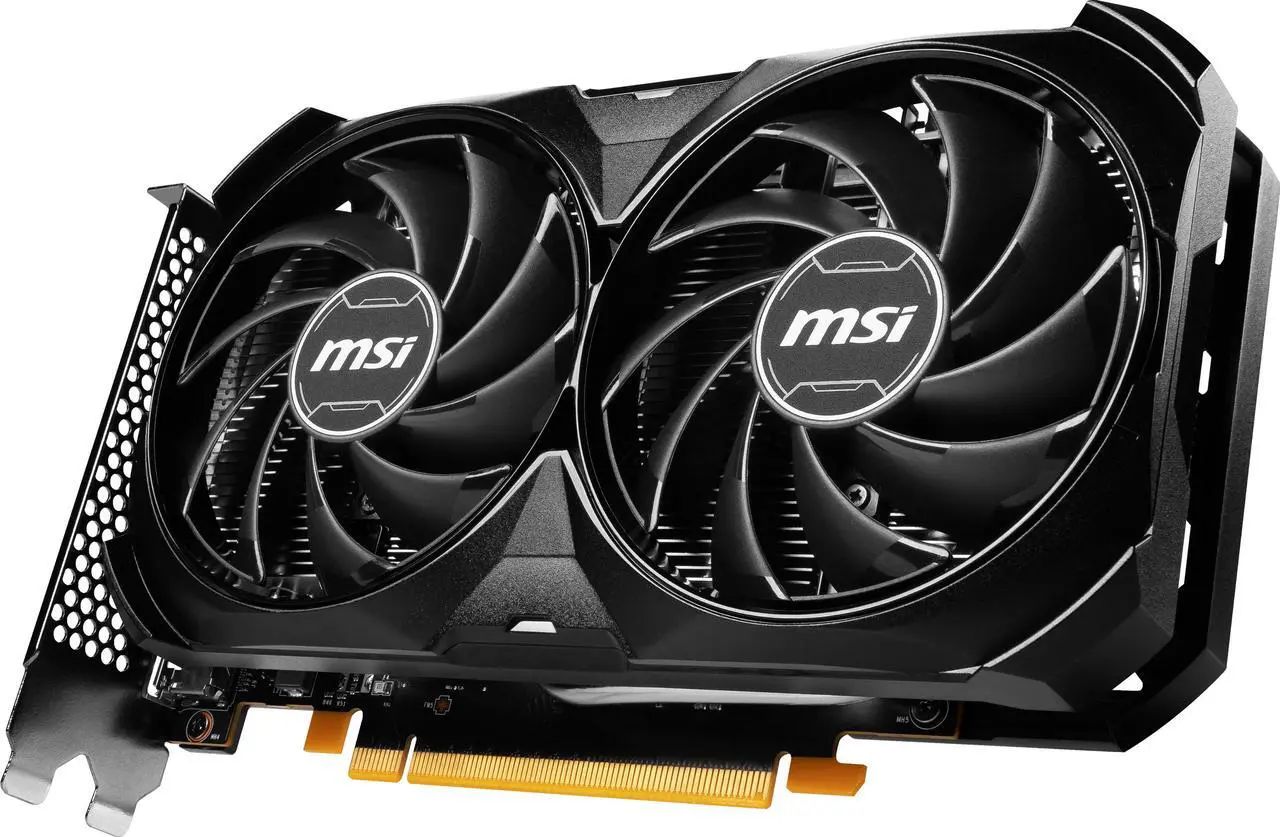

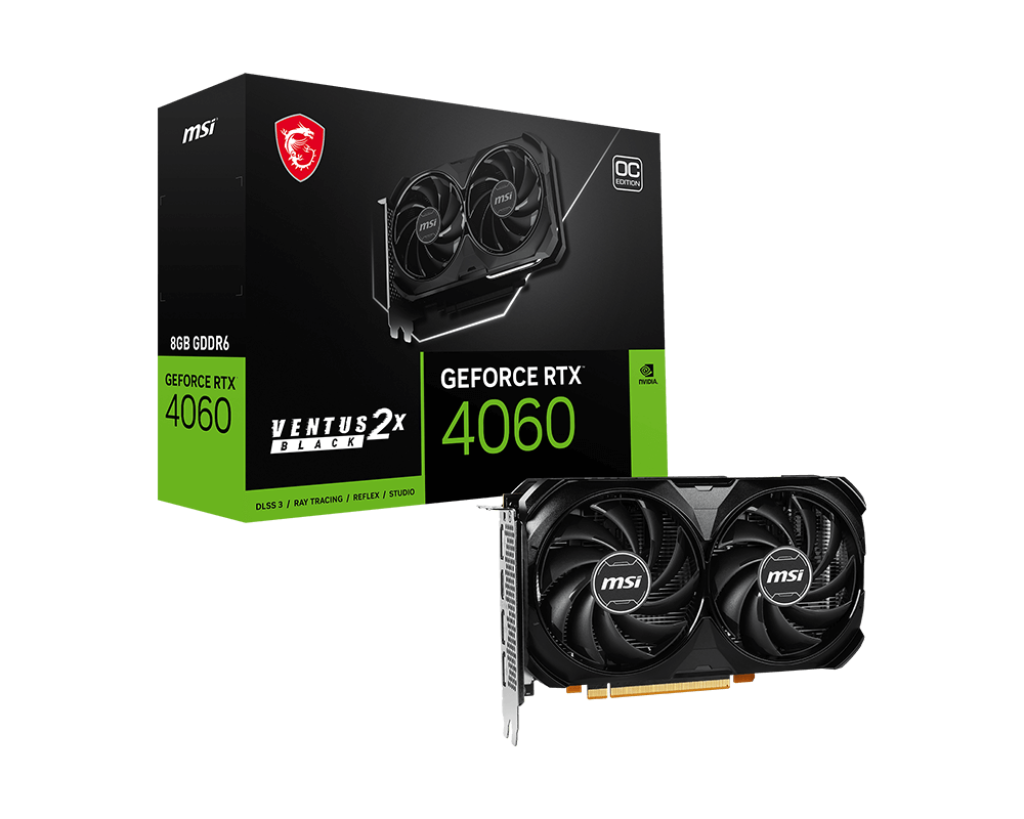

The MSI GeForce RTX 4060 VENTUS 2X BLACK 8G OC is a compact dual-slot GPU built on NVIDIA Ada Lovelace architecture, with 8GB of GDDR6 memory, a dual-fan thermal design, and a 115W power requirement.
The reviewer praised the card for its exceptional power efficiency, compact size, and strong 1080p and 1440p gaming performance, highlighting that DLSS 3 significantly enhances its value as a mainstream GPU.
The publication concluded the card is a sound choice for budget-conscious gamers needing a consistent 1080p experience, though it noted that the 8GB of VRAM could be a potential limitation in more demanding future titles.
The review was impressed with the card's performance, recommending it as a capable GPU for 1080p gaming that can also handle 4K resolution output.
The reviewer found the card to be well-built and compact, noting that while the heatsink is relatively thin, it remains an effective, power-efficient option for mini-PC builds, especially for users upgrading from several generations behind.
4,059,186 views • 3 years ago
855,223 views • 3 years ago
447,869 views • 3 years ago
108,364 views • 3 years ago
35,295 views • 1 year ago
11,311 views • 1 year ago
| Attribute | Specification | Notes |
|---|---|---|
| Capacity | 8 GB/W | GB/W |
| Compatibility | PCI Express Gen 4 x8, PCIe Gen 4 compatible (runs in PCIe slot) | |
| Component Type | GPU | |
| Cooling Design | Dual-fan | |
| Dimensions | 199 x 120 x 41 mm (card dimensions) | mm |
| Form Factor | Dual-slot graphics card | |
| Gpu Architecture | NVIDIA Ada Lovelace | |
| Gpu Model | NVIDIA GeForce RTX 4060 | |
| Interface Standard | PCI Express Gen 4 x8, DisplayPort x 3 (v1.4a), HDMI x 1 (HDMI 2.1a), 8-pin power connector | |
| Manufacturer | MSI | |
| Performance Spec | Boost clock: 2490 MHz (OC/boost, MSI Center), CUDA cores: 3072, Memory speed: 17 Gbps, Memory: 8GB GDDR6, Memory bus: 128-bit | |
| Power Requirements | 115 W | W |
| Ray Tracing Support | Yes | |
| Thermal Design | Dual-fan thermal design, Zero Frozr (fans stop at low temperatures) | |
| Vram Capacity | 8 |
