Updated 3 months ago

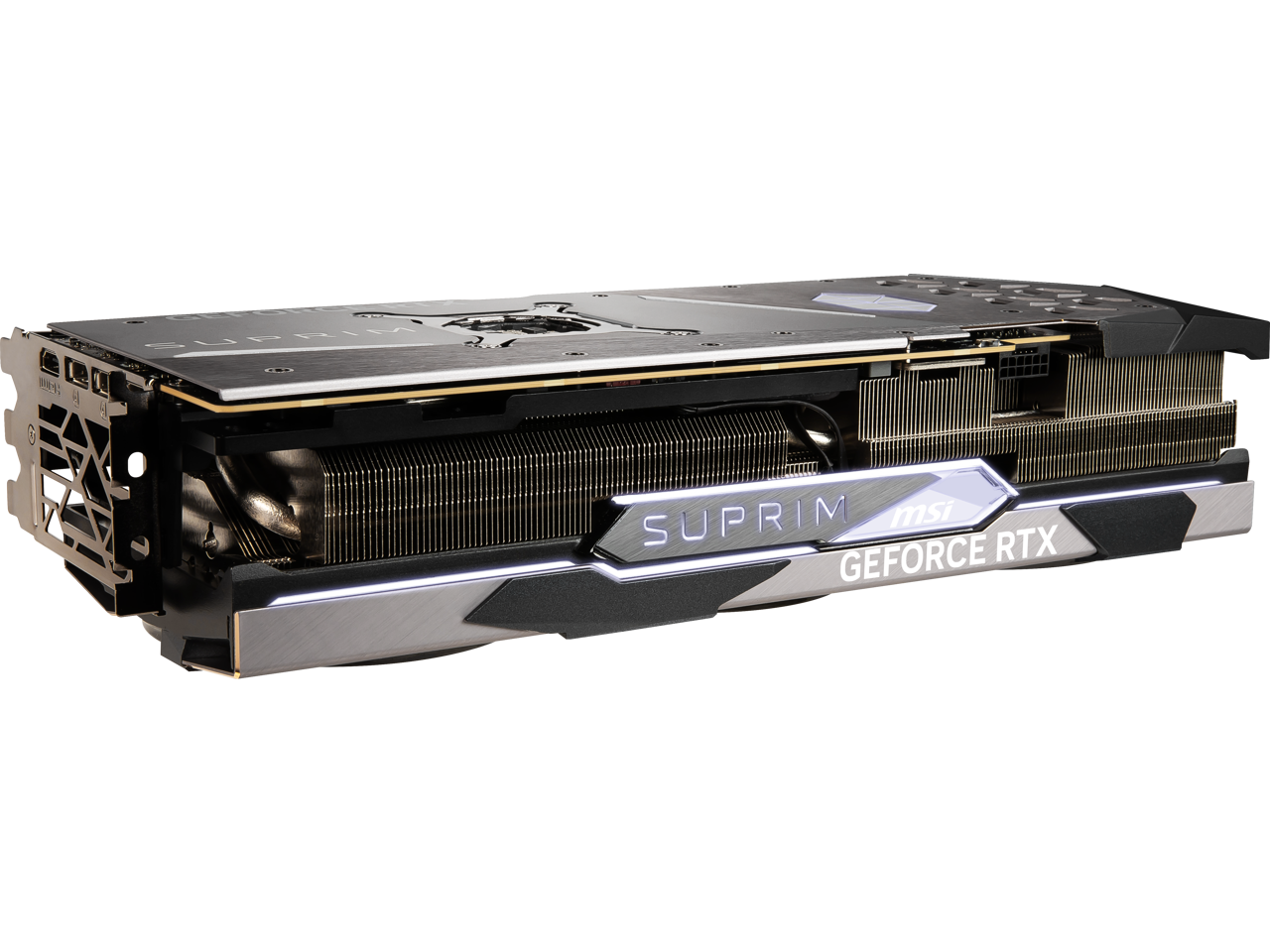

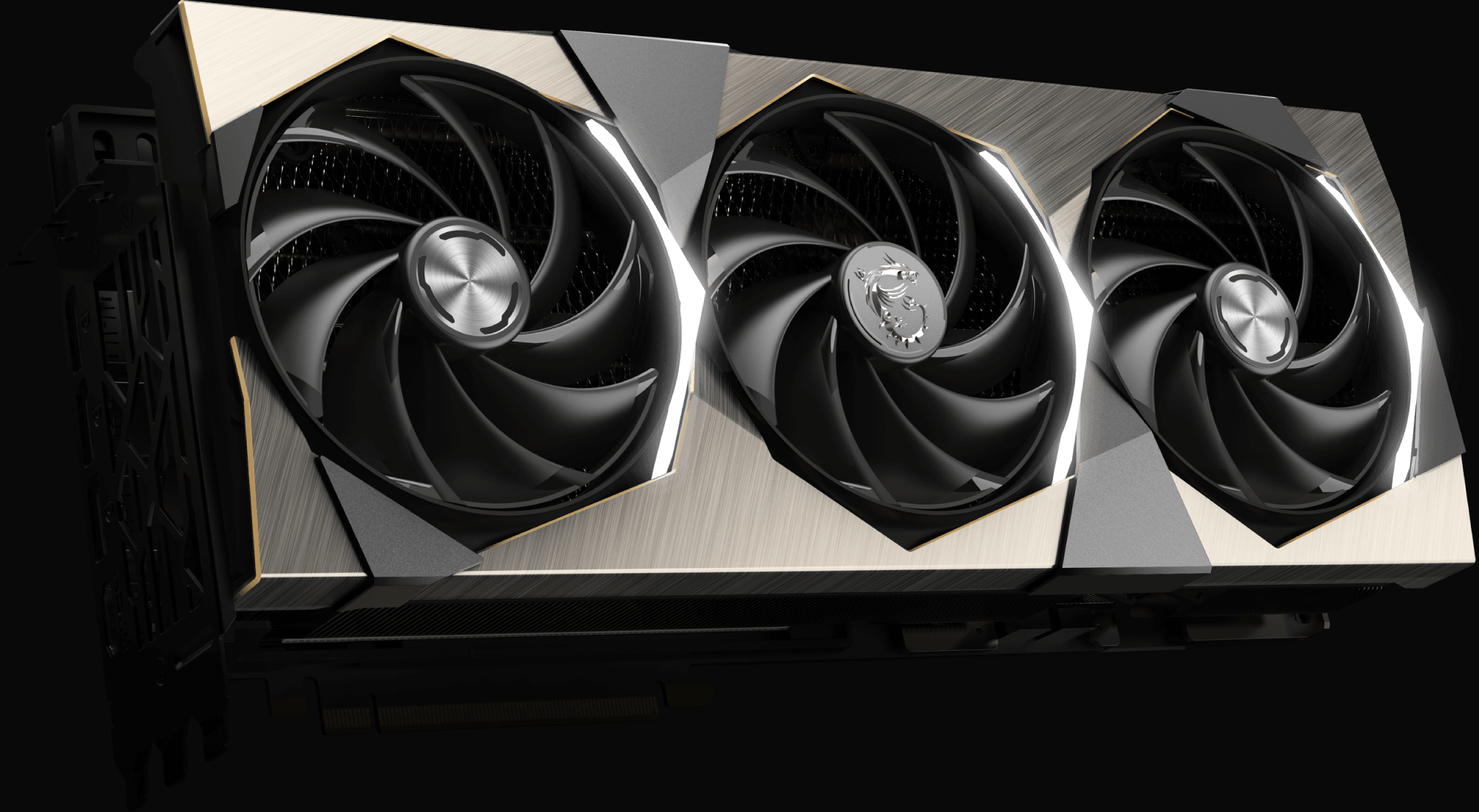

GeForce RTX 4090 SUPRIM X 24G
The flagship of MSI's lineup, offering a sleek design with the efficient Tri Frozr 3S cooling system and TORX Fan 5.0. It provides exceptional thermal performance for the world's fastest GPU.
General Information
BrandMSI
NameGeForce RTX 4090 SUPRIM X 24G
Attributes
| Attribute | Specification | Notes |
|---|---|---|
| Boost Clock | 2625 | |
| Capacity | 24 GB/W | GB/W |
| Card Length | 336 | |
| Compatibility | PCI Express Gen 4 | |
| Component Type | GPU | |
| Cooling Design | Open-air triple-fan (Tri Frozr 3S) | |
| Dimensions | 336 x 142 x 78 mm | mm |
| Display Outputs | 3x DisplayPort 1.4a, 1x HDMI 2.1a | |
| Encoder Decoder Features | AV1 encode/decode, Dual NVENC Encoders | |
| Form Factor Slot Width | 3.7 | |
| Gpu Architecture | NVIDIA Ada Lovelace | |
| Gpu Model | NVIDIA GeForce RTX 4090 | |
| Interface Standard | PCI Express Gen 4, DisplayPort 1.4a, HDMI 2.1a, 16-pin 12VHPWR (power connector) | |
| Manufacturer | MSI | |
| Max Supported Displays | 4 | |
| Memory Bandwidth | 1008 | |
| Memory Bus Width | 384 | |
| Pcie Interface | PCIe 4.0 x16 | |
| Performance Spec | Extreme Performance core clock: 2640 MHz (MSI Center), Boost core clock: 2625 MHz (GAMING & SILENT Mode), CUDA cores: 16384, Memory speed: 21 Gbps, Memory: 24GB GDDR6X, Memory bus: 384-bit | |
| Power Connectors | 1x 16-pin (12VHPWR) | |
| Power Draw Tgp | 450 | |
| Power Requirements | 480 W | W |
| Price | 499.99 | USD |
| Ray Tracing Support | Yes | |
| Recommended Psu Wattage | 1000 | |
| Upscaling Technology | NVIDIA DLSS 3 | |
| Vram Capacity | 24 | |
| Vram Type | GDDR6X | |
| Warranty Length | 3 | |
| Warranty Period | 36 months | months |
