Compact Dual-Slot Design
At 163 mm long and 39.5 mm wide, this dual-slot card uses a single-fan open-air cooler for small-form-factor builds.
If you buy through affiliate links, we may earn commissions, which help support our site.
Updated 5 months ago

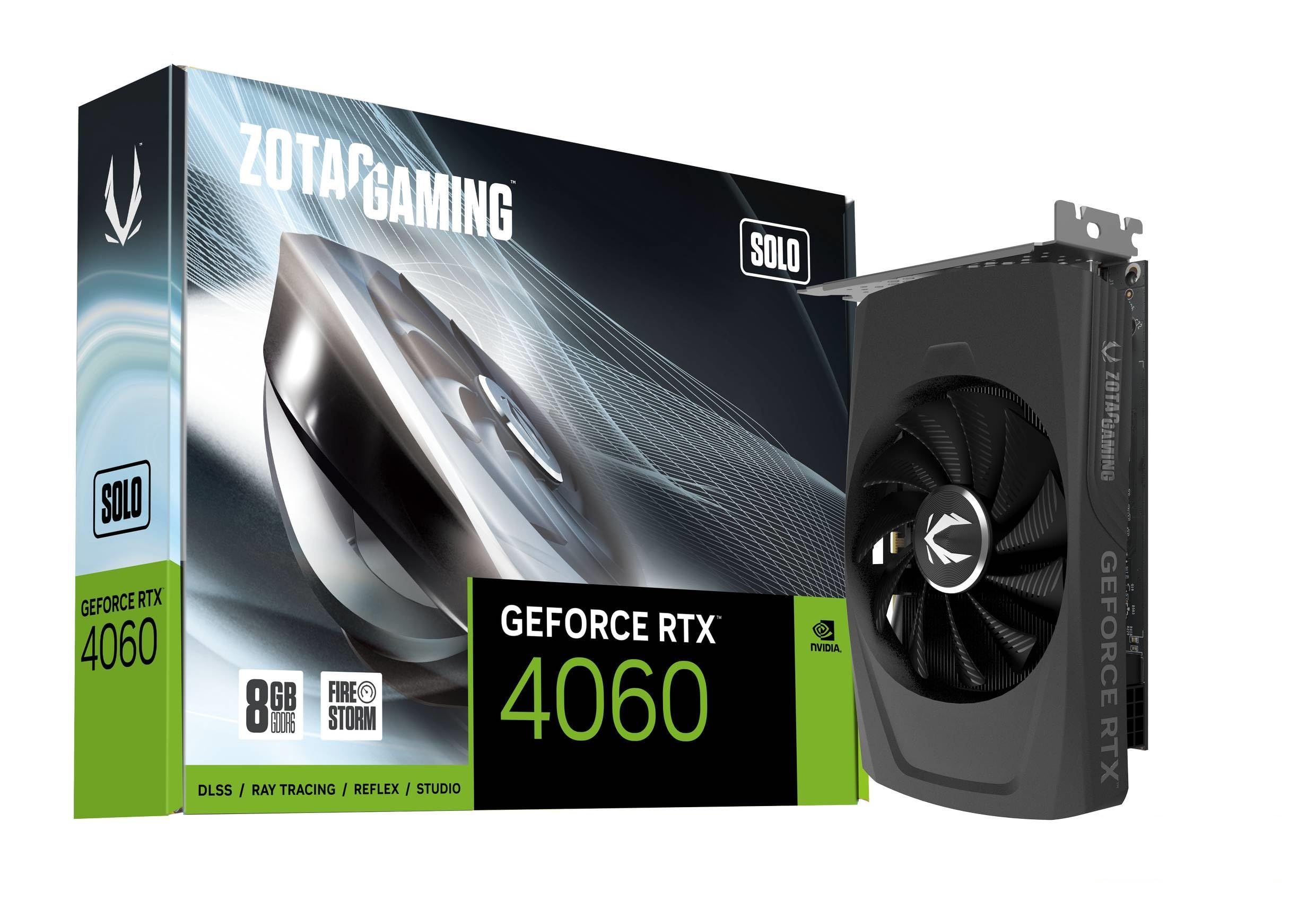

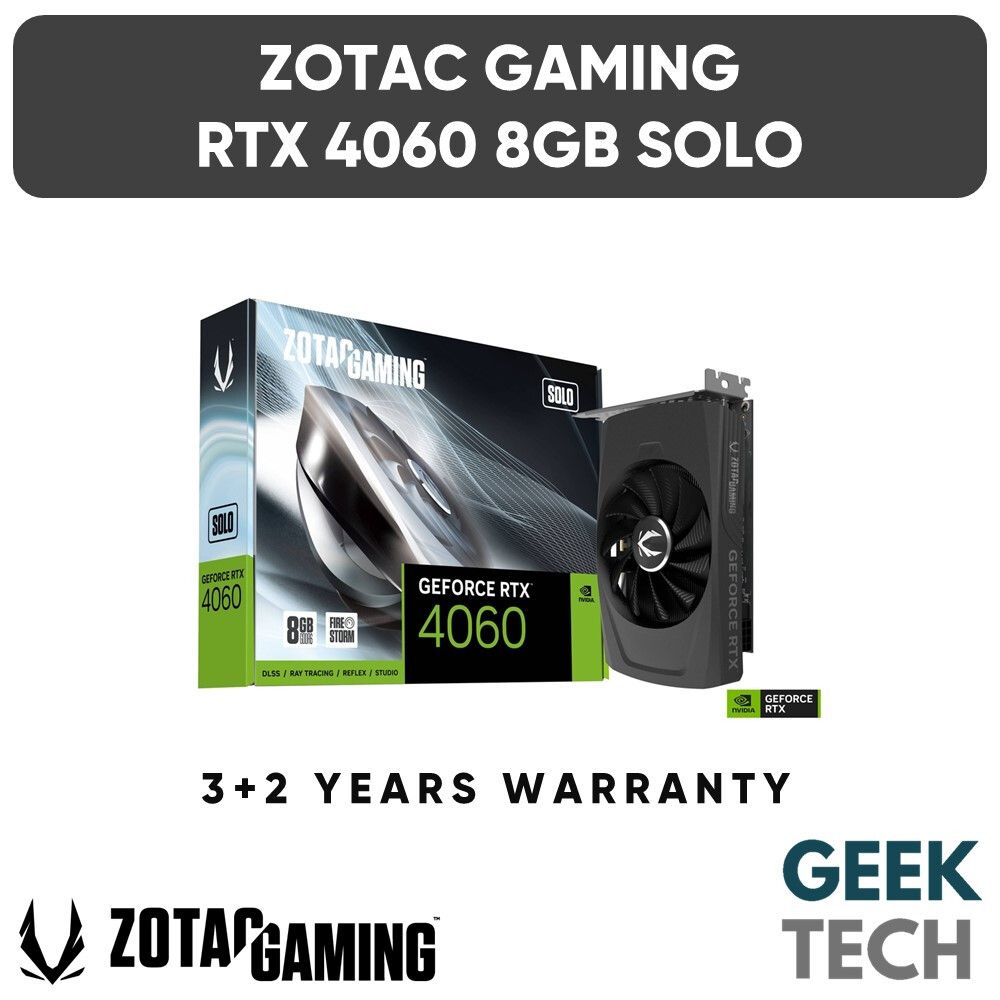

Gaming GeForce RTX 4060 Solo 8GB GDDR6
A small form factor GPU that fits into almost any case while providing full RTX 40 series features like Frame Generation.
General Information
BrandZotac
NameGaming GeForce RTX 4060 Solo 8GB GDDR6
Product Highlights
RTX 40 Series Features
NVIDIA Ada Lovelace architecture provides ray tracing support and Frame Generation.
Flexible Display Connectivity
Support for up to four displays includes DisplayPort 1.4a and HDMI 2.1a connectivity.
The Zotac Gaming GeForce RTX 4060 Solo is a compact desktop GPU with 8GB of GDDR6 memory, NVIDIA Ada Lovelace architecture, a 2460 MHz boost clock, and support for ray tracing and Frame Generation.
Media Reviews
SFF.Network
Nvidia RTX 4060 Review – Testing ZOTAC GAMING’s RTX 4060 SOLO 163mm Long GPU for the Small Form Factor Market
The reviewer praised the card's compact design, efficiency, and quiet operation in small form factor builds, noting it as an excellent choice for SFF systems, though they criticized the underlying RTX 4060 GPU design for its limited VRAM and 128-bit bus.
Read review
XFastest News
FHD 輕裝甲 ZOTAC GAMING GeForce RTX 4060 8GB SOLO 顯示卡開箱測試
The review highlighted the card's ability to handle 1080p gaming smoothly with DLSS 3, its compact 163mm size ideal for ITX builds, and its efficient thermal performance, though it noted that VRAM limitations could impact performance in memory-intensive titles with high settings.
Read review
Video Analysis
Attributes
| Attribute | Specification | Notes |
|---|---|---|
| Boost Clock | 2460 | |
| Capacity | 8 GB/W | GB/W |
| Card Length | 163 | |
| Compatibility | PCI Express 4.0 x8, Desktop GPU, Windows 10 / 11 64-bit | |
| Component Type | GPU | |
| Cooling Design | Single Fan Open-air | |
| Dimensions | Length: 163 mm, Height: 117.6 mm, Width: 39.5 mm (2-slot) | mm |
| Display Outputs | 3 | |
| Encoder Decoder Features | 3 | |
| Form Factor | 2-slot (dual-slot) | |
| Form Factor Slot Width | 2 | |
| Gpu Architecture | NVIDIA Ada Lovelace | |
| Gpu Model | NVIDIA GeForce RTX 4060 | |
| Interface Standard | PCIe 4.0 x8, 8-pin PCIe power input, DisplayPort 1.4a, HDMI 2.1a, HDCP 2.3 | |
| Manufacturer | ZOTAC | |
| Max Supported Displays | 4 | |
| Memory Bandwidth | 272 | |
| Memory Bus Width | 128 | |
| Pcie Interface | PCIe 4.0 x8 | |
| Performance Spec | Boost clock: 2460 MHz, CUDA cores: 3072, Memory clock: 17 Gbps, Memory bus: 128-bit | |
| Power Connectors | 1 | |
| Power Draw Tgp | 115 | |
| Power Requirements | 115 W | W |
| Ray Tracing Support | Yes | |
| Recommended Psu Wattage | 450 | |
| Thermal Design | Max power consumption (TDP): 115W | |
| Upscaling Technology | 1 | |
| Vram Capacity | 8 | |
| Vram Type | GDDR6 | |
| Warranty Length | 3 | |
| Warranty Period | 36 months | months |
